LP87524J-Q1: LP87524J-Q1: Power Ripple test consultation

user5309454

Intellectual 420 points

Part Number: LP87524J-Q1
Other Parts Discussed in Thread: IWR6843AOP, LP87745-Q1

My group is developing a product based on LP87524JRNFRQ1+IWR6843AOP.

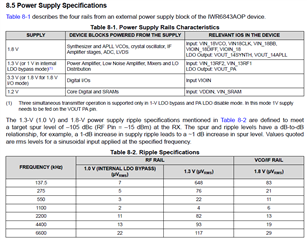

For 1.8V and 1.0V power supply, IWR6843AOP has ripple requirements as shown in the following figure.

According to the requirements in Table 8-2, the ripple of μVRMS level needs to be measured at seven frequency points.

What kind of equipment should be used and how to make the measurement?

(I have only measured mV ripples using an oscilloscope)

Thanks.
Rgds

over 2 years ago

0 Garrett Kreger over 2 years ago

TI__Mastermind 31840 points

Hi Rgds,

Thanks for reaching out! Our customer support team is unavailable Monday and Tuesday October 17-18th due to all-day workshops. Please expect a delayed response. Thank you for your patience.

Regards,

Garrett

0 Samuli Piispanen over 2 years ago in reply to Garrett Kreger

TI__Expert 4985 points

Hi,

Similar question was asked for LP87745-Q1 previously and the answer applies here. See this thread linked below.

https://e2e.ti.com/support/power-management-group/power-management---internal/f/power-management---internal-forum/1130888/lp8774-q1-how-to-measure-pmic-frequency-noise-any-instrument-to-do-that?tisearch=e2e-sitesearch&keymatch=lp8774%20measurement#

BR,

Samuli

0 user5309454 over 2 years ago in reply to Samuli Piispanen

Intellectual 420 points

page not found......

0 Samuli Piispanen over 2 years ago in reply to user5309454

TI__Expert 4985 points

Hi,

We use the following measurement setup. Spectrum analyzer is configured to use RMS detector and from the measurement data it is possible to calculate the noise. The linear regulator shown in the picture is not used in LP87745-Q1 measurements since the EVM includes preregulator to step down 12V to 3.3V

BR,

Samuli
