USB-PD-CHG-EVM-01: USB-PD-CHG-EVM-01

switch

Part Number: USB-PD-CHG-EVM-01
Other Parts Discussed in Thread: BQ25792, TPS25750

Hi Ti team,

USB-PD-CHG-EVM-01Integrated USB Type-C® Power Delivery (PD) and charging reference design for 2-4 cell batteries EVM,Can the USB-PD-CHG-EVM-01 scheme charge a single 4.2V battery？

over 3 years ago

0 Michael Emanuel35 over 3 years ago

TI__Mastermind 41575 points

Hello,

Please see the following FAQ:

https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/1021144/faq-why-can-the-usb-pd-chg-evm-01-not-be-configured-for-a-1s-battery

Regards,

Mike Emanuel

0 switch over 3 years ago in reply to Michael Emanuel35

Genius 3840 points

Hi,

I refer to USB-PD-CHG-EVM-01 to design a single 4.2V lithium battery circuit, please help to review it.Thanks!

0 Michael Emanuel35 over 3 years ago in reply to switch

TI__Mastermind 41575 points

Hello,

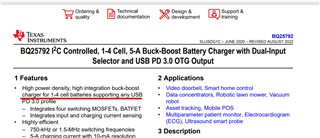

My schematic review of BQ25792 is as follows:

1. We recommend 3x pieces of 10uF and 1x piece of 0.1 uF on PMID.

2. What is the PROG pin connected to? Please follow table 9-1 in the BQ25792 datasheet for 1s configuration and proper switching frequency with inductor.

3. We recommend 5x pieces of 10uF and 1x piece of 0.1 uF on SYS.

I will turn it over to my PD counterpart to review the TPS25750.

Regards,

Mike Emanuel
