TPS16530 - Voltage observed at output

Hemalatha R

Hi,

We have TPS16530 as load switch to power up external peripheral.

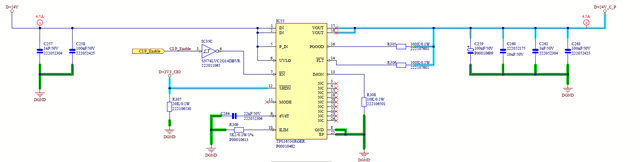

Power to this device is dual powered (Battery and DC Supply) and when device is in shutdown mode (no supply, but battery alone is connected not powered), still I observe voltage of 110mV at the output.

EN and SHDN pin control signals are active only during DC Supply.

I'm trying to understand and find leakage path here which is making 110mV at output. Could you suggest possible way to avoid this?

over 2 years ago

0 Rakesh over 2 years ago

TI__Guru** 105361 points

Hi Hemalatha,

Thanks for reaching out!

The internal FET has "Drain to Source Leakage Current" which will establish some voltage even in disable condition.

Since it is much below the operating threshold of load, it won't be any concern.

Best Regards,

Rakesh

0 Hemalatha R over 2 years ago in reply to Rakesh

Prodigy 70 points

Hi Rakesh,

Thanks for update,

There is no load at the output, could you share how much is internal FET has "Drain to Source Leakage Current" ?

Best Regards,

Hemalatha R

0 Rakesh over 2 years ago in reply to Hemalatha R

TI__Guru** 105361 points

40uA (typ) at 24V

Best regards

Rakesh

0 Hemalatha R over 2 years ago in reply to Rakesh

Prodigy 70 points

Hi,

Is this leakage current included in IQ(OFF) current 60uA?

Or 40uA is additional to 60uA?

0 Rakesh over 2 years ago in reply to Hemalatha R

TI__Guru** 105361 points

IQ(OFF) is not included in that 40uA leakage current

0 Hemalatha R over 2 years ago in reply to Rakesh

Prodigy 70 points

Hi Rakesh,

Thanks, I assume this data is not available in datasheet.

Do you have details or graph about leakage at different input voltages?

0 Rakesh over 2 years ago in reply to Hemalatha R

TI__Guru** 105361 points

Hi Hemalatha,

We only have typical value at 24V and 60V.

40uA (typ) at 24V and 42uA (typ) at 60V

Best Regards,

Rakesh

0 Hemalatha R over 2 years ago in reply to Rakesh

Prodigy 70 points

Hi Rakesh,

Thanks for info, one last query would be is, is it possible to share updated datasheet for same?

0 Rakesh over 2 years ago in reply to Hemalatha R

TI__Guru** 105361 points

Hi Hemalatha,

At the moment, We don't have any plan to update data sheet with that parameter.

Best Regards,

Rakesh
