LM5116: Input supply for ZETA Converter

Please make sure that there shouldn't be by sort of transformer and regulator in the circuit.

Thanks

Hello Usman

Please describe an issue / a question you have.

By the way, is this your master degree thesis project in Pakistan ?

-Eric Lee

As I mentioned above that I want to design input supply for ZETA converter so that I could operate it at 24V DC so that I must have constant 24V DC output from zeta converter. Please help me designing the input power supply of 24V DC from AC supply from 95V to 265V using EMI filters and protections.

By the way, I'm not doing masters.

Hello Usman

Would you please describe the issue / the question you have in detail. ?

- Eric Lee

I tried to design a power supply for my circuit and I designed it using Proteus software as attached. But this circuit is not working in Tina TI software. I don't know what's the problem with this.

Eric please help me figure out the issue in the Tina TI software file. I am attaching.rec.TSC

BLDC motor Drive.pdf

Hello Usman

The simulation file you sent me works well in my laptop. Please uninstall and reinstall TINA, or install TINA in other computer.

- Eric Lee

Look Eric

The simulation file you ran at your laptop needs no perfection and anything else. I just want to design a power supply for that circuit as explained above. I told you to design a power supply like I designed in the circuit shown in pdf named BLDC motor Drive.pdf. I want to design and simulate the circuit shown in the pdf file using Tina TI software.

As you can see in the pdf, when I provide 90 to 265V AC to the circuit, I provides me constant 60 to 64V DC. I just want to design that circuit using Tina TI software.

For that, I also tried my best to design that circuit using Tina TI software but that doesn't work for me. My designed circuit is shown in rec.TSC file.

Kindly help me implementing that circuit in Tina TI software.

Best Regards,

Usman Haider

2211.BLDC motor Drive.pdf7002.rec.TSC

Please find the above attached files

Hello Usman

7002rec.TSC file also works well in my laptop....Have you tried to uninstall and reinstall the TINA software?  And I cannot find LM5116 device in your 7002.TSC file. Also, I don't know how we are able to have the regulated output when AC input varies from 90-265V in the 'BLDC motor Drive.pdf'

Look Eric!

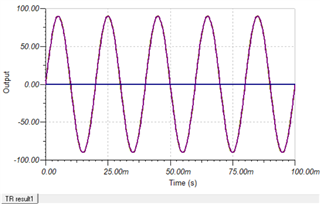

As you can see. This output waveform isn't correct because I am getting zero volt DC output. I want to get 20 to 50 V DC output.

Please help me figure out the problem with the circuit.
