TPS536C7: Using remote and local sensing togather

Abhishek Singh

Part Number: TPS536C7

Hi Team

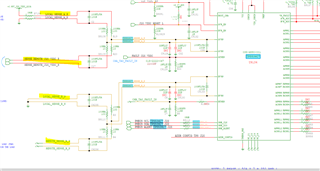

We are using TPS536C7 in one of our new design , for schematic we are taking reference of one our working board in that there we were using remote and local sensing as shown below .

/resized-image/__size/320x240/__key/communityserver-discussions-components-files/196/pastedimage1669898187250v1.png

Please do let me know following question

1) What is advantage of using these two sensing ?

2) what precautions we should take while using such method ? When we should use these method ?

over 2 years ago

0 Abhishek Singh over 2 years ago

Prodigy 105 points

8_phase _local and remote sensing.pdf
Uploading file a s above image is not clear .

+1 Travis Williams over 2 years ago in reply to Abhishek Singh

TI__Expert 8960 points

Hi Abhishek,

1. It allows the voltage regulator to regulate if the remote sense is compromised (such as processor not in socket). It can also help with loop stability.

2. Make sure the remote sense resistors are much smaller than the local sense resistors, 10x is good. We recommend having the local sense for any design in the event the remote sense line becomes compromised.

Thanks,

Travis

0 Abhishek Singh over 2 years ago in reply to Travis Williams

Prodigy 105 points

Hi Travis

Thanks for quick update. Do you have any docuemnt / literature which i an refer to learn more about this.

0 Travis Williams over 2 years ago in reply to Abhishek Singh

TI__Expert 8960 points

Hi Abhishek,

Here's some info on general remote sensing. I haven't been able to find any on the combo remote & local sense, as this is unusual for non-cpu applications.

https://www.ti.com/lit/an/slyt467/slyt467.pdf?ts=1669921685363&ref_url=https%253A%252F%252Fwww.google.com%252F

Thanks,

Travis
