BQ27546-G1: bqfs file

Michael Black78

Part Number: BQ27546-G1
Other Parts Discussed in Thread: BQSTUDIO

Hi,

The bqfs file I exported from the bqStudio should have the following format:

“W: i2cAddr RegAddr Byte0 Byte1 Byte2…”.

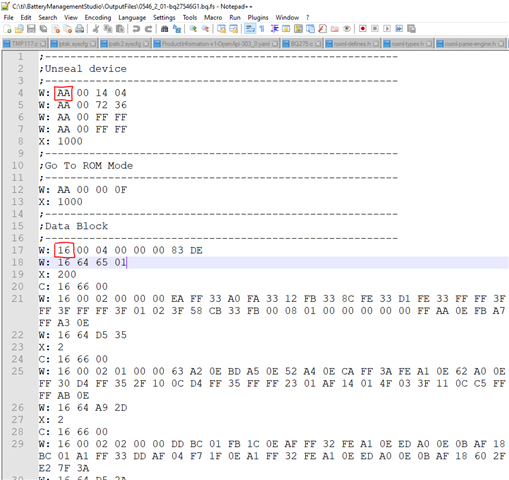

So the first byte is the address. In the Data Block, it looks like the address changes. Is this correct or does this mean my bqfs has some issue?

Thanks,

Michael

over 2 years ago

0 Shirish over 2 years ago

TI__Guru 57697 points

Hello Michael,

The bqfs is correct. The address is different in ROM mode

0 Michael Black78 over 2 years ago in reply to Shirish

Intellectual 350 points

Thanks!

0 Michael Black78 over 2 years ago in reply to Michael Black78

Intellectual 350 points

I have a followup question on this. What is ROM mode? This is not mentioned in the specification or technical manual. Does this mean unsealed mode or something else?

+1 Shirish over 2 years ago in reply to Michael Black78

TI__Guru 57697 points

Hello Michael,

ROM mode is not documented and only used for programming the golden image. The bq.fs file makes the process simple by providing the sequence of commands without having to worry about how ROM mode works. The gauge will never be in ROM mode during normal operation.
