TPS1211-Q1: back-to-back FETs connection

Noriyuki Takahashi

Part Number: TPS1211-Q1

Hi team,

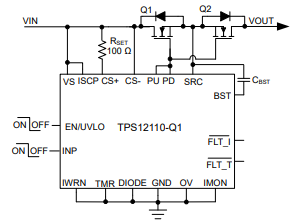

Could you tell the reason why back-to-back FETs are connected with source common as below?

It seems that back-to-back FETs are connected with drain common in case of low side driver. Could you also tell the reason this?

Regards,

Noriyuki Takahashi

over 2 years ago

0 Rakesh over 2 years ago

TI__Guru** 105361 points

Hi Noriyuki Takahashi,

Thanks for reaching out!

The TPS1211-Q1 gate drive architecture supports back-to-back FETs only in common source configuration. Can you share your requirements.

Best Regards,

Rakesh

0 Noriyuki Takahashi over 2 years ago in reply to Rakesh

TI__Genius 10980 points

Rakesh,

Customer just wants to understand any reasons/backgrounds why the device has the architecture supports back-to-back FETs only in common source configuration. Any comments on this?

Regards,

Noriyuki Takahashi

0 Rakesh over 2 years ago in reply to Noriyuki Takahashi

TI__Guru** 105361 points

Noriyuki Takahashi,

We need dual gates to drive FETs in common drain configuration such as LM749x0-Q1 https://www.ti.com/lit/ds/symlink/lm74910-q1.pdf

one gate drives the FET with reference to Vin and other gate drive the other FET with reference to Vout

Best Regards,

Rakesh
