BQ27Z746: Shutdown power consumption

Hailiang Zhang

Part Number: BQ27Z746

Hi Team,

Will grounding the ENAB pin prevent the device from entering shutdown mode normally? The customer reported that the power consumption in shutdown mode is 12uA is observed via a multimeter . We checked the conditions to enter shutdown mode, but everything look good. Could you pls help？

Regards，

Hailiang

over 2 years ago

+1 Dominik Hartl11 over 2 years ago

TI__Guru 61536 points

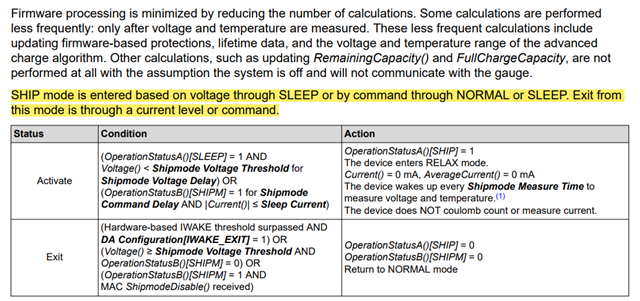

The device won't enter shutdown mode if ENAB is pulled low permanently. See TRM, https://www.ti.com/lit/ug/sluuca6/sluuca6.pdf, 6.6 SHUTDOWN Mode:

0 Hailiang Zhang over 2 years ago in reply to Dominik Hartl11

TI__Genius 11080 points

Hi Dominik，

Is it recommended that customers float the ENAB pin or connect it to GPIO？

Thanks，
Hailiang

0 Dominik Hartl11 over 2 years ago in reply to Hailiang Zhang

TI__Guru 61536 points

For full functionality, ENAB should be GPIO controlled.

0 Hailiang Zhang over 2 years ago in reply to Hailiang Zhang

TI__Genius 11080 points

Hi Dominik，

When the device is in ship mode. The client connects an adapter and cannot exit ship mode. why is that? In addition, if the device enters the ship mode through the command, must it exit the ship mode through the command. That is to say, the same conditions must be used to exit ship mode?

Thanks，
Hailiang

0 Dominik Hartl11 over 2 years ago in reply to Hailiang Zhang

TI__Guru 61536 points

Did you set IWAKE_EXIT to 1? If so, the gauge will exit ship mode if it detects a current that exceeds the IWAKE threshold.

If SHIPM = 1, then you'll have to send the ShipmodeDisable() command to exit ship mode. It will not wake up if the voltage exceeds the ship mode voltage threshold.
