TPS7A91: Layout Review

Desireddy Teja Reddy

Part Number: TPS7A91

Hi Team,

We are using the TPS7A9101DSK LDO part in our Layout Board file. I had attached the images of the Board file and Schematics. Please review the layout and share your feedback with us.

The PCB we are using is of 12 Layers:

IC - Place on top

Layers 2,4,9 and 11 are Ground

Note: R635 is No Mount

Thanks and regards

- Teja.

over 2 years ago

0 Erin Thibeault over 2 years ago

TI__Expert 6570 points

Hi Teja,

This layout looks good. I am curious about C99 in your schematic, the NR/SS capacitor. Where is that located in your layout?

BR,

Erin

0 Desireddy Teja Reddy over 2 years ago in reply to Erin Thibeault

Intellectual 650 points

Hi Erin,

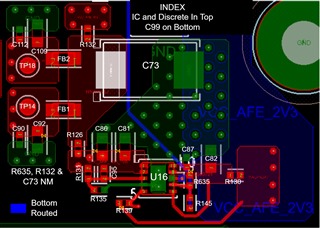

Thanks for your valuable feedback. The capacitor C99 is placed on the bottom. Please find the image attached below for the better understanding.

Thanks and regards,

- Teja.

+1 Erin Thibeault over 2 years ago in reply to Desireddy Teja Reddy

TI__Expert 6570 points

Hi Teja,

Thank you! Everything looks good.

BR,

Erin
