UCD90320: I2C/PMBUS timing check

HSU HANWEN

Part Number: UCD90320

Could you help provide

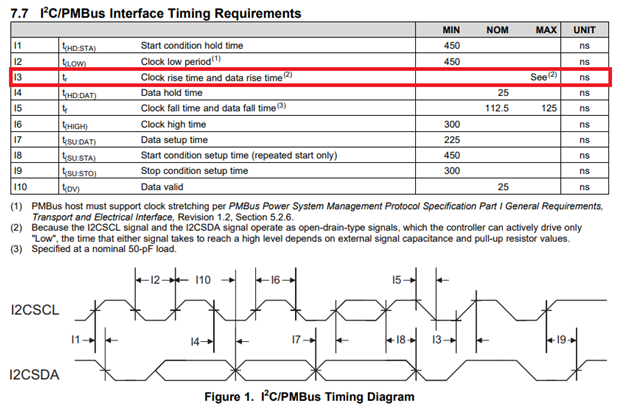

1. Max. rise time (tr)

2. What's definition of rise and fall time? Is it 30%VCC to 70%VCC?

0 Ryan Chen over 2 years ago

Hi Hanwen,

We are looking at this and will get back to you by Tuesday.

Best,
Ryan

+1 yihe over 2 years ago in reply to Ryan Chen

As the foot note explained, it is not controlled by UCD.

But for 100KHz, 1000ns would be okr and 400Khz, 300ns is ok.

The rising time measure shall follow I2C spec. please check it.

Regards

ihe

0 HSU HANWEN over 2 years ago in reply to yihe

Hi Yihe:

What about fall time? The timing doesn't follow I2C.

Is it still measured from 70%VCC to 30%VCC?
