We designed a power supply schematic & generated a BOM (24V to 5V@3Amps) using WEBENCH.

All components are assembled as per the schematic & tested.

No-load condition 7.3V output is getting in place of 5V output. On 7.3V output, we placed a load of 10mA then the driver IC failed.

over 2 years ago

0 Richard Fu22 over 2 years ago

TI__Mastermind 31015 points

Hi Kakarla,

Sorry to hear that your design is running into issues. Can you provide your schematic, layout, and any waveforms of the start-up, and steady-state (SW, VIN, VOUT, and SS) to start off?

Regards,

Richard

0 Kakarla Brahmam over 2 years ago in reply to Richard Fu22

Prodigy 20 points

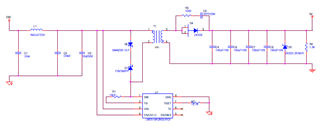

This is my schematic & transformer is using coilcraft make i.e., ZA9671-BED

turns ration is 3:1

kindly do needful

0 Richard Fu22 over 2 years ago in reply to Kakarla Brahmam

TI__Mastermind 31015 points

Hi Kakarla,

There's nothing about the schematic that stands out wrong to me. Do you have any waveforms to share, or a bit more to describe in what manner of how the LM25184 failed?

Regards,

Richard

0 Kakarla Brahmam over 2 years ago in reply to Richard Fu22

Prodigy 20 points

I am loading on output side with 10mA of resistive load then the IC is failed.

Input side high current drawn and out voltage is not getting after loading.

0 Kakarla Brahmam over 2 years ago in reply to Kakarla Brahmam

Prodigy 20 points

IC over heated after removing the load and high current drawn on input side(24VDC).

0 Richard Fu22 over 2 years ago in reply to Kakarla Brahmam

TI__Mastermind 31015 points

Hi Kakarla,

It looks like you may have a short on your board.

For further information, can you provide the transformer that you were using?

Also, layout and waveforms will be very important in understanding what is going on since right now, otherwise it will be very difficult to find out the root cause.

Regards,

Richard
