TL431: I need to know TL431ILPMR pin assign

h.sasai

Part Number: TL431

I would like to know the pinout of the TL431ILPMR. Checking the datasheet, it looks like the placement is reversed left to right in the table on page 4 and the diagram on pages 80-81. The datasheet I referred to is this: https://www.ti.com/jp/lit/gpn/tl431 I am in a hurry with my design and would like to know as soon as possible.

over 2 years ago

0 Masoud Beheshti61 over 2 years ago

TI__Mastermind 18061 points

Hello,

Cathode is pin 1. Perhaps I don't follow your question.

0 h.sasai over 2 years ago in reply to Masoud Beheshti61

Prodigy 10 points

Thank you for your reply.

I have more question.

I have documented the question. Please check here.

drive.google.com/.../view

0 Masoud Beheshti61 over 2 years ago in reply to h.sasai

TI__Mastermind 18061 points

Please kindly attach here as PDF file. We are not able to access external drives.

0 h.sasai over 2 years ago in reply to Masoud Beheshti61

Prodigy 10 points

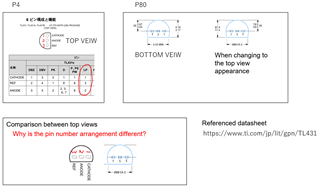

I understand. So do you see this?

h.sasai_question.pdf

0 Masoud Beheshti61 over 2 years ago in reply to h.sasai

TI__Mastermind 18061 points

Hello. sorry about the confusion.

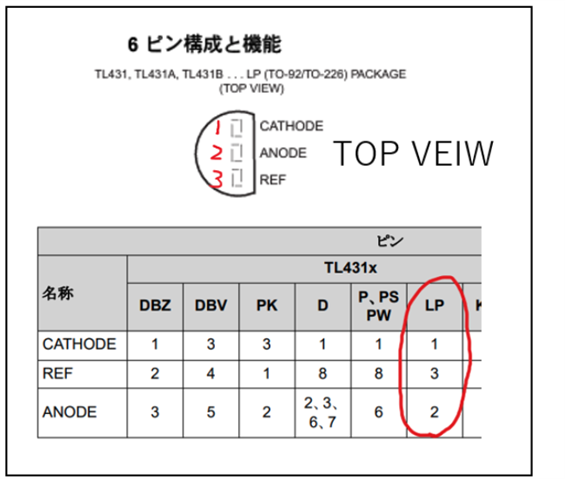

The following diagram indicates the correct pinout.

0 h.sasai over 2 years ago in reply to Masoud Beheshti61

Prodigy 10 points

Thank you for your response.

I understand about the correct pin placement.

We would appreciate it if you would consider revising any discrepancies.

This concludes my question.

Best regards
