LM25148: diode emulation

Ernest Yong

Part Number: LM25148

Hi Team,

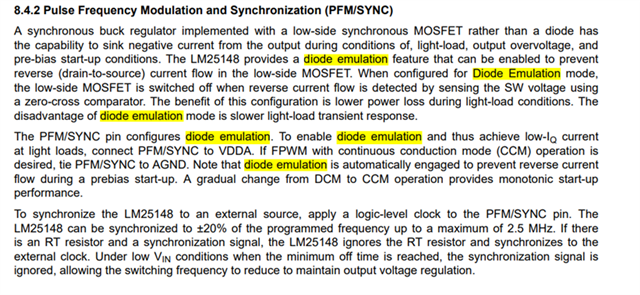

My customer is planning to implement LM25148 into their modular IO project. Some questions to ask regarding the diode emulation feature.

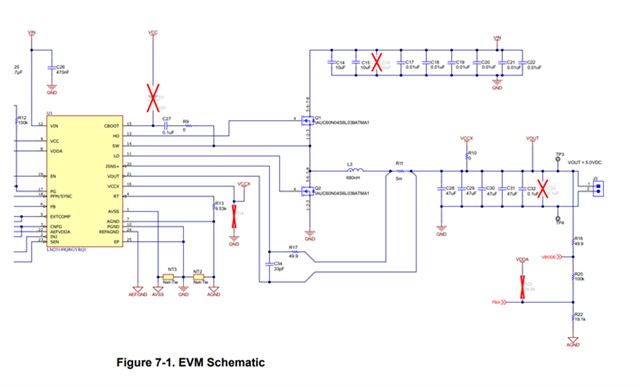

If I want to enable diode emulation mode, any additional diodes needed to be added inside the circuit? As I can't see any diodes inside the block diagram around the LO pin, or from the EVM schematic.

Best Regards,

Ernest

over 2 years ago

0 Shipeng Cheng over 2 years ago

TI__Genius 17450 points

Hi Ernest,

Diode emulation mode means we use the low-side MOSFET working as a diode, so we don't need to add a diode.

Best Regards,

Shipeng

0 Ernest Yong over 2 years ago in reply to Shipeng Cheng

TI__Expert 4520 points

Hi Shipeng,

Thanks for the update! May I know what is the main advantage of using a mosfet instead of diode?

Thanks again!

+1 Shipeng Cheng over 2 years ago in reply to Ernest Yong

TI__Genius 17450 points

Hi Ernest,

When working in light load, the controller will turn off the low-side MOSFET at inductor current reaches zero, which can improve efficiency.
