TPS55340: EN Threshold Voltage range is confusing.

CHANGHEE LEE

Part Number: TPS55340
Other Parts Discussed in Thread: LM5157

Hi Team

We are planning to put voltage divider before Enable pin of TPS55340.

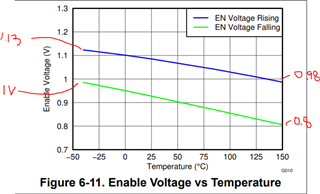

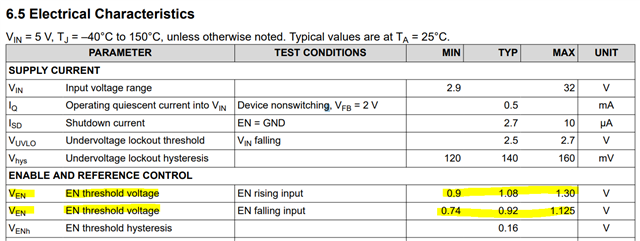

We are confused about that 6.5 Electrical characteristics Ven is quite different with the Graph Figure 6-11.

Please let us know which one is right. Thanks

0 Feng Ji over 2 years ago

Hi Changhee,

Please use the value in the 6.5 Electrical characteristics. These values in the table are guaranteed by test.

Figure 6-11 shows a typical value and how it varied with temperature.

Best regards,

Feng Ji

0 CHANGHEE LEE over 2 years ago in reply to Feng Ji

Hi Feng

Thank you for your reply.

This is Additional Question.

We use TPS55340 in temperature range 5℃ to 70℃.

In this case, Can you let us know the EN Threshold voltage?

That`s because We want to make Enable low at the Vin minimum voltage at 7.6V and Enable high at the Vin maximum voltage at 11.1V

"-40℃ to 150℃"'s EN Threshold voltage range is too wide for our application.

Thanks

0 Feng Ji over 2 years ago in reply to CHANGHEE LEE

Hi Changhee,

We cannot provide EN Threshold voltage within 5℃ to 70℃.

Maybe you can take a look at LM5157 UVLO. You can program the ON/OFF voltage with LM5157 and LM5158 Quickstart Calculator for Boost Regulator Design.

Best regards,

Feng Ji
