TPS922053: CIN datasheet information does not fit with EVM board

Gaston Schelotto

Part Number: TPS922053
Other Parts Discussed in Thread: TPS922055

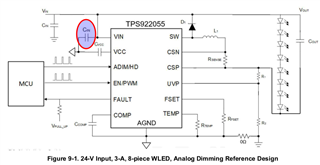

Here's the typical application for TPS922055 24-V Input, 3-A, 8-piece WLED Driver With Analog Dimming (page 19 of TPS92205x datasheet)

and the comment about CIN:

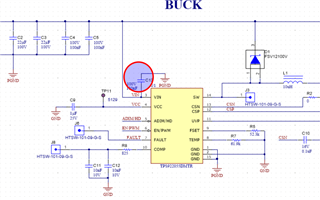

However in the EVM board CIN's are tied as shown

The typical application described in the datasheet shows CIN connected to AGND and PGND whereas in the EVM CIN is only connected to PGND.

Could anybody clarify this?

gaston

over 2 years ago

0 Steven Li over 2 years ago

TI__Mastermind 23150 points

Hi Gaston,

The decoupling capacitor for VIN should be placed between VIN and AGND. Normally a 100-nF ceramic capacitor is ok. You can refer to the below picture for the correct connection.

Best Regards,

Steven

0 Gaston Schelotto over 2 years ago in reply to Steven Li

Expert 2850 points

Indeed, this is what the datasheet states. But why isn't it this way on the eval board?

As indicated in the previous post, CIN is placed between VIN and PGND in the EVM board

gaston

+1 Steven Li over 2 years ago in reply to Gaston Schelotto

TI__Mastermind 23150 points

Hi Gaston,

This is a mistake in this prototype version of EVM. We will correct it in the formal version of EVM. Thanks for pointing out this mistake.

BR,

Steven
