TPS55288: PSPICE Simulation not working

Shwetanshu Singh

Part Number: TPS55288

Hi,

I am trying to run a PSPICE simulation of TPS55288. Vin = 12V, Vout = 9V,3A.
The circuit I am simulating is a replication of the one suggested on WeBench designer. The only difference is that I have connected the I2C pins to ground, as unconnected pins throw another error.
However, on running the simulation I get an error as attached in the image. The convergence error is always thrown at Time = 100.0E-06.

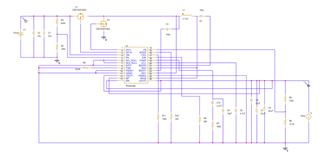

The circuit I am simulating is as below. Please let me know, if there is an error in the circuit or there is some other problem.

Thanks

over 2 years ago

0 Bryce Xun over 2 years ago

TI__Mastermind 27850 points

Hi Shwetanshu,

May I know where do you download the library file? We have released the PSpice model for TPS55288 on the product page, you can use that for simulation.

https://www.ti.com/lit/zip/slvmdd9

BRs,

Bryce

0 Shwetanshu Singh over 2 years ago in reply to Bryce Xun

Prodigy 200 points

Hi Bryce,

I have downloaded the library file from the TPS55288 product page. And I am running the simulation on Pspice for TI also downloaded from the product page.

Thanks

0 Bryce Xun over 2 years ago in reply to Shwetanshu Singh

TI__Mastermind 27850 points

Hi Shwetanshu,

Can you reply with your simulation project with removed data file? Thanks.

BRs,

Bryce

0 Shwetanshu Singh over 2 years ago in reply to Bryce Xun

Prodigy 200 points

Hi Bryce,

Is there private conversation where I can share the simulation?

Thanks
Shwetanshu

0 Bryce Xun over 2 years ago in reply to Shwetanshu Singh

TI__Mastermind 27850 points

Hi Shwetanshu,

I have sent you the friendship request, please approve it, and then you can send me the file via conversation.

BRs,

Bryce

0 Shwetanshu Singh over 2 years ago in reply to Bryce Xun

Prodigy 200 points

Hi Bryce,

I have approved the request and sent you the file already. Please go through it and let me know.

Thanks
Shwetanshu

0 Bryce Xun over 2 years ago in reply to Shwetanshu Singh

TI__Mastermind 27850 points

Hi Shwetanshu,

Thanks, I have received the file and will let you know if it can work properly.

BRs,
Bryce

0 Bryce Xun over 2 years ago in reply to Bryce Xun

TI__Mastermind 27850 points

Hi Shwetanshu,

I added the lib file of TPS55288, changed some circuit parameter and modified the simulation setting, the schematic is ok to run now with the ideal Buck side FET. I have sent the file to you, you can try with the real MOSFETs.

BRs,

Bryce

0 Shwetanshu Singh over 2 years ago in reply to Bryce Xun

Prodigy 200 points

Hi Bryce,

I tried running the simulation with the simulation settings that you sent. The simulation speed is still very slow, and the output voltage settles at 1V above of what the circuit is designed for. Can you suggest why this might be happening?

Thanks

Shwetanshu

+1 Bryce Xun over 2 years ago in reply to Shwetanshu Singh

TI__Mastermind 27850 points

Hi Shwetanshu,

The simulation speed is low with PSpice compared with other simulation tool. So if you want to check many items with PSpice which would cost a lot of time.

The internal reference voltage is set at 1.24V, so you would see the output voltage is higher than target value.

BRs,
Bryce

+1 Shwetanshu Singh over 2 years ago in reply to Bryce Xun

Prodigy 200 points

Hi Bryce,

Thanks for your response. That clears up my doubt.

Shwetanshu
