TPS6598X-CONFIG: Flash From Current Project - FTDI - Failing Verification

Scott Gaetjens

Part Number: TPS6598X-CONFIG
Other Parts Discussed in Thread: TPS65987

Hello,

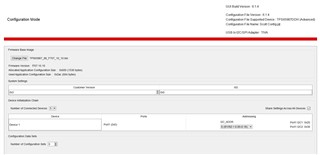

We're using the TPS65987 in a product. We've selected the W25X05CLSNIGTR as our flash chip. I've brought out the SPI lines on the TPS65987 EVM and connected them to a programming header on our board to program the flash chip. Every time I try to program the flash from the TPS6587X-CONFIG GUI, it fails the verification step. Is there something I need to configure differently in the GUI? Here are my settings:

And here is my project file:

Scott Config.pjt

And here is my schematic which you should already have from a previous forum post, but I'll share it again:

PCA-04014-01-A SCHEMATIC.PDF

The GUI has no problem programming the MX25L8006EM1I-12G you guys used on your EVM. I'm not sure what the difference is between that part and the part we chose. Any assistance would be greatly appreciated. Thanks!

over 1 year ago

0 Varun Thakurta over 1 year ago

TI__Intellectual 1660 points

Hi Scott,

If you try to sweep through the i2c addresses, is it able to identify the PD with the expected address?

Thanks,

0 Scott Gaetjens over 1 year ago in reply to Varun Thakurta

Intellectual 270 points

Here's what comes up when I do the I2C sweep from the adapter settings.

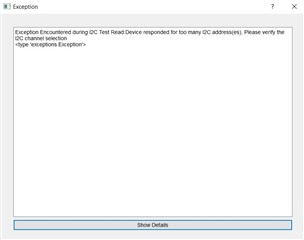

Then this error pops up:

0 Scott Gaetjens over 1 year ago

Intellectual 270 points

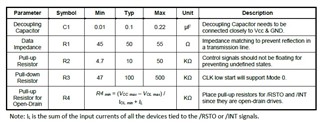

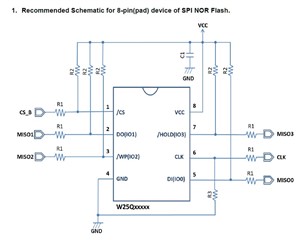

Update - I didn't have my external power supply hooked up. Ignore the previous comment. I'm able to program the MX25L8006EM1I-12G on the eval board, but not our W25X05CL. The W25X05CL is still failing the verification step. I modified the EVM to use 10k pullups on CS, MISO, MOSI, HOLD, and WP, and a 100k pulldown on CLK per the reference schematic provided from Winbond. I did not place any series resistors on the data lines. I removed the MX25L8006EM1I-12G and placed the W25X05CL on the same pads.
