TPS63700: Device recommendation inquiry

JH Shin

Guru 10890 points

Part Number: TPS63700
Other Parts Discussed in Thread: TPS65131, LMR43620

Hello,

My customer is looking for a device with the conditions below.

- VIN = 5V , VOUT = +15V ad -15V , IOUT = 500mA

1. Is there a power device that satisfies the above conditions in one package? please recommend it.

2. If it is not supported by one package, please recommend a product that supports +15V and -15V respectively for 5V input. They prefer products that can be designed into the smallest package area.

3. If there is a product with 15V input and -15V (500mA) output, please recommend it.

Thank you.

over 1 year ago

0 Bryce Xun over 1 year ago

TI__Mastermind 27620 points

Hi JH,

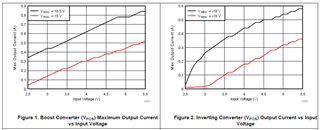

I am afraid the most suitable device is TPS65131 which can support +15V and -15V with single device, but the max output current can't be up to 500mA. Please post a new thread including TPS65131, so the experts of TPS65131 can answer your questions.

And for +15V input, -15V output (500mA), you can use the Buck as a inverting Buck-Boost for that.

BRs,

Bryce

0 JH Shin over 1 year ago in reply to Bryce Xun

Guru 10890 points

Hi Bryce,

Thanks for your reply.

Could you please recommend the best device for +15V input, -15V outout(500mA)? If possible, please provide an example application as well.

The customer prefers products that support high operating temperatures in a small package.

Regards,

0 Bryce Xun over 1 year ago in reply to JH Shin

TI__Mastermind 27620 points

Hi JH,

I will assign this to WV Buck team for this. Thanks.

BRs,

Bryce

0 Joshua Austria over 1 year ago in reply to Bryce Xun

TI__Mastermind 24115 points

Hi Bryce,

Were you looking for a buck converter or a module?

Thank you,

Joshua Austria

0 Bryce Xun over 1 year ago in reply to Joshua Austria

TI__Mastermind 27620 points

Hi Joshua,

The customer is looking for the solution for +15V input, -15V output(500mA)? If possible, please provide an example application as well.

The customer prefers products that support high operating temperatures in a small package.

BRs,

Bryce

0 Joshua Austria over 1 year ago in reply to Bryce Xun

TI__Mastermind 24115 points

Hi Bryce,

Sounds good. You can use the LM63615 or the LM63625 for your application if you want a converter. Please check out this app note to configure the device for a negative voltage output.

Thank you,

Joshua Austria

0 JH Shin over 1 year ago in reply to Joshua Austria

Guru 10890 points

Hi Joshua,

Thanks for your help.

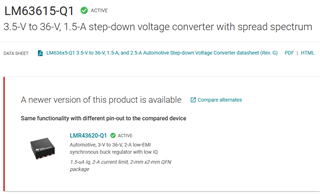

I looked into the LM63615 you recommended and found the following introduction on TI.com.

The LMR43620 is a more recent release and has a smaller package.

Would it be okay to introduce the LMR43620 to the customer as a device that can apply the same app notes as the LM63615?

BR,

0 Joshua Austria over 1 year ago in reply to JH Shin

TI__Mastermind 24115 points

Hi Brian,

Yes the same app note should work apart from other minor considerations (datasheet differences in voltage ranges and current limits mainly). You can also use this app note as a general purpose guide into turning a converter into an inverting buck boost.

Thank you,

Joshua Austria
