BQ28Z610: check the circuit configuration

R.Fukunaga

Expert 2445 points

Part Number: BQ28Z610

Hi all,

I would like to ask you to check the circuit configuration.

My customer uses BQ28Z610 to protect battery and create battery pack.

Please check if there is any problems with resistance and capacitor value.

My customer created with reference to EVM configuration.

bq28z610EVM 1- to 2-Series Li-ion Battery Pack Manager Evaluation Module

Best Regards,

Ryusuke

over 1 year ago

+1 Anthony over 1 year ago

TI__Mastermind 28450 points

Hi Ryusuke,

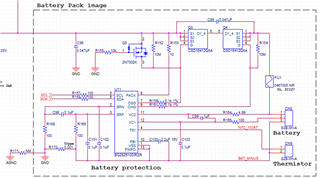

I have two recommendations for this schematic:

1) All devices other than the sense resistor should be individually grounded and not tied to the negative side of the battery seen here:

2) Either a Net Tie or 0 Ohm resistor should be connected to the negative side of the battery seen in the EVM schematic below:

Regards,

Anthony Baldino

0 R.Fukunaga over 1 year ago in reply to Anthony

Expert 2445 points

Hi Anthony,

Thank you for your help.

Ryusuke

0 R.Fukunaga over 1 year ago in reply to R.Fukunaga

Expert 2445 points

Hi Anthony,

Let me check 2 things.

1)Is there a model number for the Net-Tie resistor?
2)Could you tell me why I need a resistor on the negative side of the battery?

Best Regards,

Ryusuke

+1 Anthony over 1 year ago in reply to R.Fukunaga

TI__Mastermind 28450 points

Hi Ryusuke,

The purpose of the Net-Tie on the negative side of the battery is for noise isolation. There is no exact model number stated in the EVM schematic, however an 8mm trace can be used in the same fashion to complete this.

Regards,

Anthony Baldino

0 R.Fukunaga over 1 year ago in reply to Anthony

Expert 2445 points

Hi Anthony,
Thank you for teaching me so kindly.
Ryusuke
