TPS62441: kΩ in the equation of switching frequency in datasheet

Ernest Yong

Part Number: TPS62441

Hi Team,

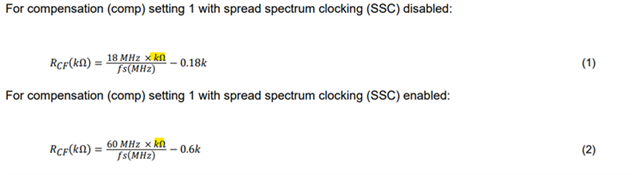

There is a kΩ in the equation of switching frequency for different compensation setting. Would like to know what does the "kΩ" refer to?

Please kindly advise.

Many thanks!

Best Regards,

Ernest

0 Excel Regidor over 1 year ago

Hi Ernest,

The "kΩ" is part of the unit for 18 and 60 (MHz•kΩ) in Comp setting equations above. See sample calculation below.

RCF (kΩ) = (18 MHz•kΩ / 2.25 MHz) - 0.18 kΩ = 8 kΩ - 0.18 kΩ

RCF = 7.82 kΩ

I hope I was able to address your queries.

Best regards,

Excel

0 Excel Regidor over 1 year ago in reply to Excel Regidor

Hi Ernest,

Just a gentle reminder.

Do you still have further questions? If not, can you kindly close the thread by clicking the "Resolve" button.

Thank you.

Best regards,

Excel

0 Excel Regidor over 1 year ago in reply to Excel Regidor

Hello Ernst,

I'm closing the thread now. You can re-open it by simply adding a comment.

Best regards,

Excel
