TPSM560R6: No Output

Alex Beaven

Part Number: TPSM560R6

Hello,

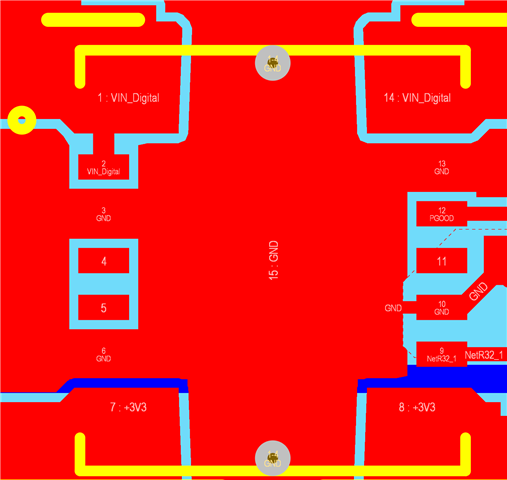

Just tried to use the TPSM560R6RDAR, but don't seem to be able to get an output. The example layouts are rather confusing. - for different skew?

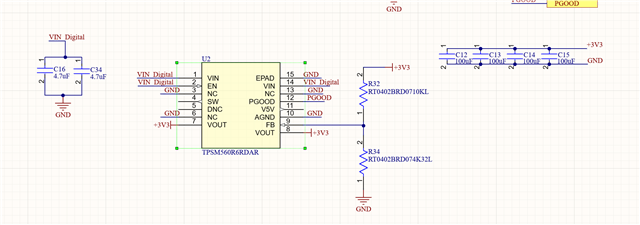

R32 = 10k

R34 = 4.32K

Cin = 4.7uF x2 100V

Cout = 100uF x4 10V

Thanks,

0 Frank De Stasi over 2 years ago

Hello

I think your layout is OK.

Do you have the VOUT connections tied together ?

Can you put a DMM on pin#11 and check for 5V.

Can you look at pin#4 with a 'scope and see if there is any switching.

Thanks

0 Frank De Stasi over 2 years ago in reply to Frank De Stasi

Hello

I will close this post due to inactivity.

You can re-open if you need more help.

Thanks
