Hi Team,

I am asking one more question related to BATFET. While inserting new battery(16.8V) without AC adapter do the body diode VGS of Q7 MOSFET do exceed rated VGS +/-12V.

Regards,

K.Saravanan

over 1 year ago

0 saravanan krishnan` over 1 year ago

Prodigy 140 points

The Q7 Part no is : CSD25402Q3A

0 Md Munir Hasan over 1 year ago

TI__Expert 3335 points

Hi Saravanan,

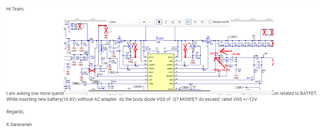

I cannot read your whole statement. Your post is appearing to me as below. However, it looks like the question is entirely about Q7. Please reformate your question so that it is readable and post the question with CSD25402Q3A as the main part in organization HPV-FET.

Best Regards,

Munir

0 saravanan krishnan` over 1 year ago in reply to Md Munir Hasan

Prodigy 140 points

Hi Munir,

When i am inserting new battery without AC adapter.
VBAT=16.8V
1) Q7 Drain - 16.8V
2) Q7 Source =16.8V(Through body diode)

3) Q7 Gate- 0V (Verfy first time inserting)

So VG-VS=0V-16.8V =-16.8V Does it exceeds Q7 VGS=+/-12 V max limit so that cant it get damage?

Q7 part no : CSD25402Q3A

Regards,

K.Saravanan

0 Md Munir Hasan over 1 year ago in reply to saravanan krishnan`

TI__Expert 3335 points

Hi Saravanan,

I am moving this thread to appropriate organization for an answer to your question.

Best Regards,

Munir

0 John Wallace1 over 1 year ago in reply to Md Munir Hasan

TI__Mastermind 37890 points

Hi Saravanan,

If VGS exceeds +/-12V, then there could be a problem with the FET. However, from the block diagram in the BQ25710 datasheet, it appears the BATDRV signal is limited to VSYS and VSYS-10V. Can the FET actually see the full 16.8V?

Thanks,

John

0 John Wallace1 over 1 year ago in reply to John Wallace1

TI__Mastermind 37890 points

Hi Saravanan,

Thanks again for your interest in TI FETs. Following up to see if your issue has been resolved. Please let me know.

Thanks,

John Wallace

TI FET Applications

0 saravanan krishnan` over 1 year ago in reply to John Wallace1

Prodigy 140 points

Hi John,

Pls confirm when i am powering up first time with battery alone condition what will be the intial state of BATDRV pin .0V or VSYS .I need to confirm whether VGS of Q7 doesnt exceed VGS=+/-12V.

0 John Wallace1 over 1 year ago in reply to saravanan krishnan`

TI__Mastermind 37890 points

Hi Saravanan,

VGS must not exceed +/-12V. I believe the apps team for the BQ device should be able to tell us what the voltage is on initial insertion. I will reassign this thread back to them.

Thanks,

John

0 Md Munir Hasan over 1 year ago in reply to saravanan krishnan`

TI__Expert 3335 points

Hi Saravanan,

At the time of battery insertion Q7 Gate is 5V. So VGS does not exceed 12V.

Best Regards,

Munir
