LV2862XLVEVM: I have PSpice for TI but I'm missing a TI component

Thomas Kofoed-Hansen

Part Number: LV2862XLVEVM
Other Parts Discussed in Thread: LV2862

I cant find the LV2862 in the library, so is there a way to import the PSpice model found on the component webpage into PSpice for TI?

Are there any simulation example projects for this component.

over 1 year ago

0 Frank De Stasi over 1 year ago

TI__Guru 72995 points

Hello

I believe the model is on the web page.

I have attached it here.

Thanks

https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/LV2862XLDDC_5F00_TRANS.OLBLV2862XL_PSPICETransientModel_FeaturesandLimitations.pdfhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/tr.mrkhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.prbhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.simhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/tr.mrkhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.prbhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.simhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/tr.mrkhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.prbhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.simhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/tr.mrkhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.prbhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/TR.simLV2862XL_TRANS.DSN LV2862XL_TRANS.LIBhttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/LV2862XL_5F00_TRANS.LIBsighttps://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/196/LV2862XL_5F00_TRANS.OPJ

0 Thomas Kofoed-Hansen over 1 year ago in reply to Frank De Stasi

Prodigy 180 points

Thanks, I did find that too but where should I put this file so I can find it from PSpice for TI?

0 Frank De Stasi over 1 year ago in reply to Thomas Kofoed-Hansen

TI__Guru 72995 points

Hello

I will speak with our SPICE team and get back to you as soon as possible.

Thanks

0 Frank De Stasi over 1 year ago in reply to Frank De Stasi

TI__Guru 72995 points

Hello

Take a look at this video, it may be helpful.

Thanks

https://www.ti.com/video/6162754989001

0 Thomas Kofoed-Hansen over 1 year ago in reply to Frank De Stasi

Prodigy 180 points

I tried but for some unknown reason nothing happens when I click the play symbol. At startup it shows an error message "VIDEO_CLOUD_ERR_UNKNOWN"?

0 Frank De Stasi over 1 year ago in reply to Thomas Kofoed-Hansen

TI__Guru 72995 points

Hello

I will ask our SPICE team for help.

Thanks

+1 Joshua Austria over 1 year ago in reply to Thomas Kofoed-Hansen

TI__Mastermind 24115 points

Hi Thomas,

Please see if this process works:

Step 1:

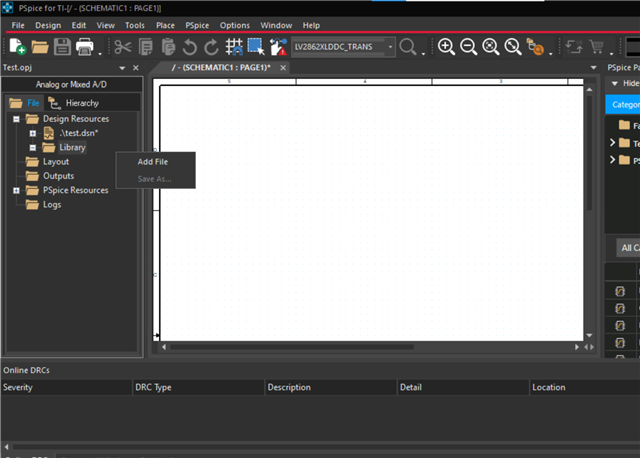

Open your project and right click the "library" folder as shown below

Step 2:

Click "Add file" and navigate to the LV2862 olb file that you got from the TI.com for the LV2862X. Click "Open."

Step 3:

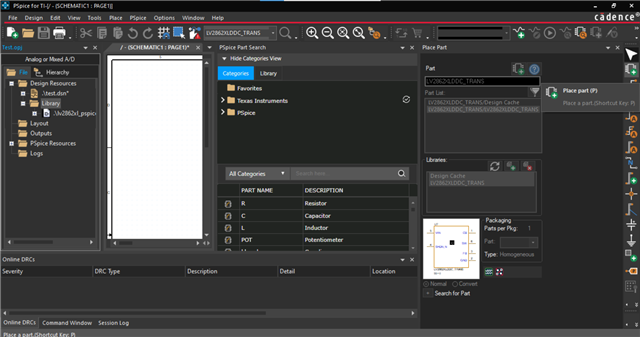

Next click the place part icon on the right hand tool bar as shown below. This should open up the library files of your project

Step 4:

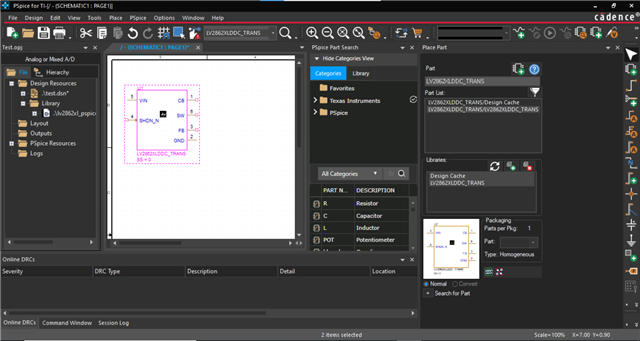

Click on the white space in your schematic. Then navigate to the LM2862 model that you want located on the right hand side and double click. You should be able to place it on your schematic.

It should work from here.

Please let me know if you have any other questions,

Joshua Austria

0 Thomas Kofoed-Hansen over 1 year ago in reply to Joshua Austria

Prodigy 180 points

Thank you Joshua for that very informative guide.
