UCC14241-Q1: some feature ask

Chen Alex1

Genius 3795 points

Part Number: UCC14241-Q1

Hi sir

I want to design the power module in ATE system

as you know ,ATE is a instrument with Accurate measurement

so we need to check all the parts less noise in the circuit

Question:

1.check high frequency radiation & noise impact

2. UCC14241 ,PWM radiation?

3. out regulaor Stable?

4. Dc isolator rating 6kv?

thanks

over 1 year ago

0 Steven Mappus1 over 1 year ago

TI__Mastermind 33115 points

Alex,

I've copy/paste each of your questions with my answers below:

1.check high frequency radiation & noise impact

Can you be more specific to describe what you are asking? are you asking about measured EMI? EMI filter recommendations? RE or CE? Which EMI standard?

2. UCC14241 ,PWM radiation?

Can you be more specific to describe what you are asking? What do you mean by PWM radiation vs high frequency radiation?

3. out regulator Stable?

The UCC14241-Q1 output is very well regulated to within ±1.3% over full operating range

4. Dc isolator rating 6kv?

VSIO is rated up to 5kV_RMS as shown in section 7.5 of the UCC14241-Q1 data sheet.

Regards,

Steve

0 Chen Alex1 over 1 year ago in reply to Steven Mappus1

Genius 3795 points

Hi Steve

question 1: Did you have the UCC14241-Q1 EMI chart? 'm worried that UCC14241-Q1 noise will interfere with my measurement circuit

question 2: same as above

question 3: that's ok,thanks

question 4: May i know if the chip rating 5KV/RMS, How about the DC Isolation voltage? 5kv*1.414 or 5kv*1.414*2?

thanks

0 Steven Mappus1 over 1 year ago in reply to Chen Alex1

TI__Mastermind 33115 points

Alex,

Which EMI scans are you asking about?

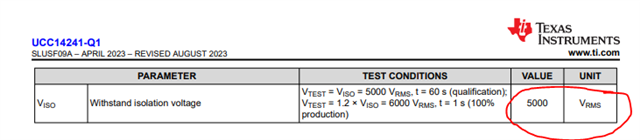

5kV isolation rating is specified in the UCC14241-Q1 data sheet, page 8:

Regards,

Steve

0 Chen Alex1 over 1 year ago in reply to Steven Mappus1

Genius 3795 points

hi Steven

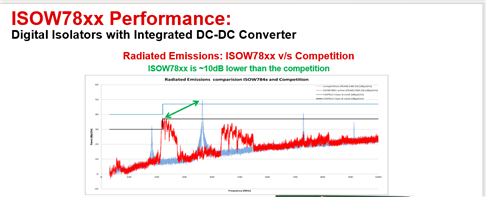

have the chart as below?

thanks

0 Steven Mappus1 over 1 year ago in reply to Chen Alex1

TI__Mastermind 33115 points

Alex,

We are testing to CISPR 25, class 5 which is automotive EMI limits. The attached will give you an idea of the emissions and mitigation suggested.

4621.EMI MagnetoMV_CE Filter_Customer Share.pdf

Regards,

Steve
