TPS562242: TPS562242DRLR Simulation Error

Shangugapriya G

Part Number: TPS562242

I am trying to simulate TPS56224 Voltage regulator at PSPICE.

But I am getting the error “ undefined parameter steady state” after that I searched in TI website and added the parameter SS=0, still there is a error.

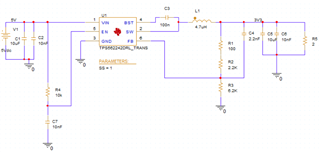

Here I have attached the images for your reference.

over 1 year ago

0 Lucia Gao over 1 year ago

TI__Mastermind 29981 points

Hi,

Let me check and get back to you soon. Thanks!

BRs

Lucia

0 Lucia Gao over 1 year ago

TI__Mastermind 29981 points

Did you change anything in the simulation model? Could you run successfully after download it from ti.com website?

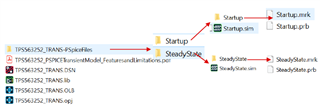

Thanks!

BRs

Lucia

0 Shangugapriya G over 1 year ago

Prodigy 20 points

I didn’t change anything in simulation model.

Yes. after downloading from website I just imported the symbol, when I am trying to run the simulation its giving the error message which I mentioned.

BR,

Shangugapriya G

0 Lucia Gao over 1 year ago in reply to Shangugapriya G

TI__Mastermind 29981 points

Hi Shangugapriya

Why you need to imported the symbol? You can just directly run the simulation without import the symbol?

BRs

Lucia

0 Shangugapriya G over 1 year ago in reply to Lucia Gao

Prodigy 20 points

Sorry for the language. I have not imported the symbol. I added the symbol in the simulation Pspice. We have not done any modifications in the simulation files.

0 Lucia Gao over 1 year ago in reply to Shangugapriya G

TI__Mastermind 29981 points

Hi Shangugapriya,

I am out of office today. I will give you feedback tomorrow. Thanks!

BRs

Lucia

0 Lucia Gao over 1 year ago in reply to Lucia Gao

TI__Mastermind 29981 points

Hi Shangugapriya,

Could you please share me the output window as shown below for your reference:

Thanks!

BRs

Lucia

0 Lucia Gao over 1 year ago in reply to Lucia Gao

TI__Mastermind 29981 points

Hi Shangugapriya,

If your error the same as above, you can just delete the diode in the schematic. It's not a must requirement. Then you can run the simulation to try again.

Thanks!

BRs

Lucia

0 Shangugapriya G over 1 year ago in reply to Lucia Gao

Prodigy 20 points

Hi Lucia

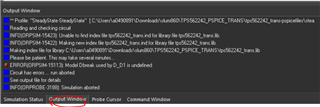

Here is my output window for your reference.

Can You please check this.

BR,

Shangugapriya G

0 Lucia Gao over 1 year ago in reply to Shangugapriya G

TI__Mastermind 29981 points

Hi Shangugapriya,

If you just open the model which is downloaded from ti.com, you can just remove the diode connected with EN and click the Pspice-Run button without error. Could you please try to follow this two steps? If you still can't solve the problem, please send me your simulation file so that I can debug for you. Thanks!

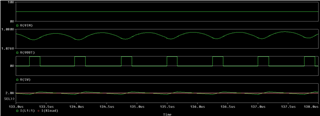

BRs

Lucia
