TPS6594-Q1: SW waveform

Lijia Zhu

Part Number: TPS6594-Q1

Hi team,

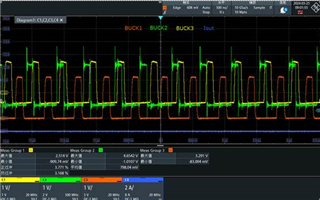

Could you help to check if SW waveform below is as expected or not?

FPN is TPS65941213, we enable force muilt-phase(0x4 bit 2=1) in NVM. and sread spectrum is enabled by default.

Concern for waveform below is green pahse and yellow phase is overlap, is it ok?

B&R

Lijia

0 Nicholas McNamara over 1 year ago

Lijia,

I'm working to confirm that this behavior on the second switch node is as expected.

BR,

Nicholas

0 Lijia Zhu over 1 year ago in reply to Nicholas McNamara

Hi Nicholas,

Any update?

B&R

Lijia

+1 Nicholas McNamara over 1 year ago in reply to Lijia Zhu

Hello Lijia,

this is expected at low current pulls.

BR,

Nicholas

0 Lijia Zhu over 1 year ago in reply to Nicholas McNamara

Hi Nicholas,

It is measured at a 8A load currect. Is it as expected? Customer just told me this information. Sorry for this.

B&R

Lijia

0 Nicholas McNamara over 1 year ago in reply to Lijia Zhu

Lijia,

if they're not hitting any ILM errors, then it is fine.

My apologies on the late reply on this one.

BR,

Nicholas
