LM5116: LM5116MH/nope - Enable Pin was not High

AJITH KUMAR

Part Number: LM5116

HI TI Team,

We are using LM5116MH/nope converter range 6-100v .i'm giving input voltage 30v and set output voltage range is 12v . now problem is enable pin was not go to HIGH .before R10 voltage is 30v after R10 it will drop and output only 5v it will fluctuate . kindly give the solution .

...

Thanks and Regards,

A. Ajith Kumar

over 1 year ago

0 EricLee over 1 year ago

TI__Guru 58971 points

Hello Ajith

Would you please share your schematic so that I can figure out the location of R10?

-EL

0 AJITH KUMAR over 1 year ago in reply to EricLee

Intellectual 510 points

Hi Ericlee,

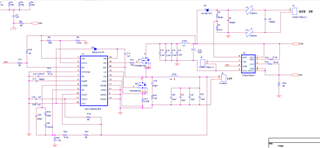

Please find the below schematic,

Thanks and Regards,

A. Ajith Kumar

0 David Baba over 1 year ago in reply to AJITH KUMAR

TI__Mastermind 40040 points

Hello Ajith,

Sorry, there may be a slight delay in response, we will get back to you Monday latest. Thanks

David.

0 EricLee over 1 year ago in reply to David Baba

TI__Guru 58971 points

Hello Ajith

Thanks for sharing the schematic. Please try these items one by one.

1. Remove R11 to check if any leak current flowing through R11.

2. Check the EN pin behavior at no load.

3. Check R17 value. The device pulls down the EN pin during the hiccup mode protection.

4. Please make it sure the CS-CSG traces are kelvin-connected to R17. Especially, the CSG trace should be directly connected to the ground connection of R17.

-EL

0 EricLee over 1 year ago in reply to EricLee

TI__Guru 58971 points

I am closing this thread since I have not heard from you for sometime.
If you are still trying to resolve the issue, please feel free to open a new thread. Thanks
- EL
