TPS1H000-Q1: Abnormal activity of DELAY pin

Nhanh Nguy?n

Prodigy 10 points

Part Number: TPS1H000-Q1

Hi everyone,

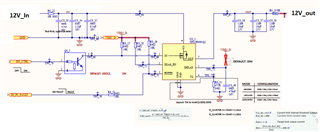

I have the design and results as below.

- Runs in latch-off mode

- With T dl2 = 150ms

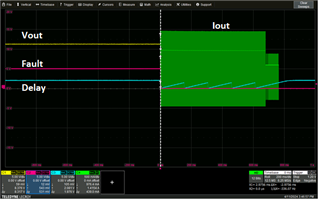

- Fault, Vout pin runs normally

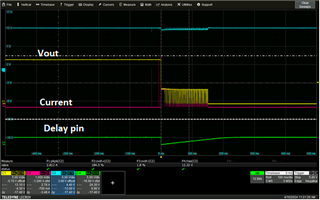

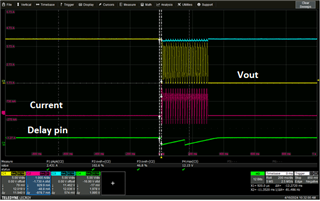

But Delay pin operated abnormally so Current out abnormal too

Can you give me idea to resolve to Current out off normally

over 1 year ago

0 Timothy Logan over 1 year ago

TI__Mastermind 34935 points

Nhanh,

I don't see anything explicitly wrong with the schematic, however could you let me know what exactly is on the load during this test? Is it an actual load or something like an eLoad in constant current mode?

Best Regards,
Tim

0 Nhanh Nguy?n over 1 year ago in reply to Timothy Logan

Prodigy 10 points

Hi Tim,

Thanks for answering my question.

I'm using eLoad in constant current mode with 1.5A.

Today, I try with Resistor and eLoad in CR mode. It gives right spec but not totally.

Can you tell me why?

Best regards,

0 Timothy Logan over 1 year ago in reply to Nhanh Nguy?n

TI__Mastermind 34935 points

Nhanh,

eLoads in constant current mode are notorious for this sort of behavior and introduce conditions into the system that are not possible/realistic when comparing to an actual real-world load. See the following E2E thread for more details:

https://e2e.ti.com/support/power-management-group/power-management/f/power-management-forum/1021866/faq-why-does-my-e-load-cause-my-high-side-switch-to-shut-down

Best Regards,
Tim
