TPS54336A: schematic check

GARETH OU

Guru 11415 points

Part Number: TPS54336A

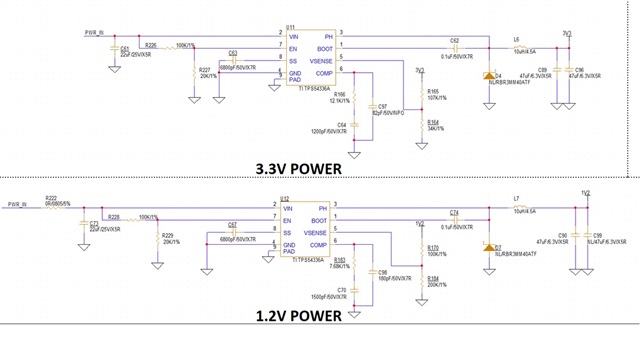

Could you help check the TPS54336A schematic and any need to adjust

Thanks

0 Gui He over 1 year ago

I will check and get back to you later.

Thanks and best regards.

0 Gui He over 1 year ago

Hi Gareth

The connection looks good to me. Can you please share what's the PWR_IN voltage? Thank you!

0 GARETH OU over 1 year ago in reply to Gui He

Guru 11415 points

Hi Gui

Thanks for your comment

VIN(PWR_IN)=12V

0 Gui He over 1 year ago in reply to GARETH OU

Hi Gareth

The schematic looks good, just one commend: please add one 0.1uF Cin and please place as close to the VIN and GND pin as possible.

Thanks and best regards.
