TPSM84209: TPSM84209 SCH REVIEW and FB PIN Trace Width.

Rajat Singh

Intellectual 350 points

Part Number: TPSM84209

Hi Team,

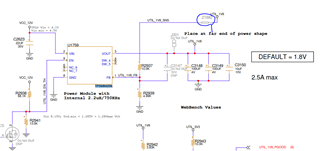

I am Using TPSM84209 in our design and want to have your review on the schematic.

Please let us know what shoould be the trace width for FB Trace.(It should route with 50 OHm)?

Many Thanks

Rajat

over 1 year ago

0 Shipeng Cheng over 1 year ago

TI__Genius 17540 points

Hi Rajat,

My colleague Bella will check this later today. Thanks.

Regards,

Shipeng

0 Gui He over 1 year ago

TI__Mastermind 27436 points

Hi Rajat

The FB trace do not flow large current and there is no specific requirement for the width. Please keep the FB resistors (R2939 and R2937) close to the FB pin and IC GND.

By 50Ohm, do you mean the Z1882? Sometimes we place 50-Ohm(49.9-Ohm is also ok) between the RFBT and Vo in case there is needs to test the circuit loop performance.

Thanks and best regards.

0 Rajat Singh over 1 year ago

Intellectual 350 points

Hi Gui,

Can you review the schematic.

Gui He said:
By 50Ohm, do you mean the Z1882? Sometimes we place 50-Ohm(49.9-Ohm is also ok) between the RFBT and Vo in case there is needs to test the circuit loop performance.

No I was asking for FB trace width we can route it as 50OHM.

Many Thanks

Rajat

0 Gui He over 1 year ago in reply to Rajat Singh

TI__Mastermind 27436 points

Hi Rajat

No need to route it as 50Ohm.

Thanks and best regards.
