BQ25628E: BQ25628ERYKR Design review

THESNI ASHRAF

Prodigy 90 points

Part Number: BQ25628E

Please review the design and Kindly share your valuable comments for the same.

over 1 year ago

0 Ning T over 1 year ago

TI__Guru 57781 points

Hi,

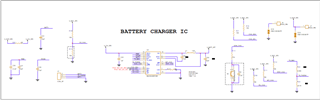

The schematic pic is hard to read. Could you please re-send? Or you may refer to Figure 9-1. BQ25628E Application Diagram on the d/s and the EVM design.

Thanks a lot,

Ning.

0 THESNI ASHRAF over 1 year ago in reply to Ning T

Prodigy 90 points

charging ic.pdf

Hi,

Please find the attached pdf for review and kindly share your feedbacks and comments

0 Ning T over 1 year ago in reply to THESNI ASHRAF

TI__Guru 57781 points

Hi,

The schematic seems ok overall and does not have obvious issue. For ILIM pin, KILIM max=2750 should be used to calculate the max input current limit setting.

Thanks,

Ning.
