TPS65224-Q1: [TPS6522x12-Q1] PMIC Resource selection query

Jihoon Kim
Intellectual 450 points
Part Number: TPS65224-Q1

Hi TI,

on document which is "J722S/AM67x/TDA4VEN/TDA4AEN Processor Automotive Power Designs using TPS6522312-Q1 PMIC"

If we set RS0 to GND, is it right LDO2 is for SD Card supply?

I understood

 1) RS0: 0 set -> LDO2 for SD Card

 2) RS0: 1 set -> LDO2 for efuse supply

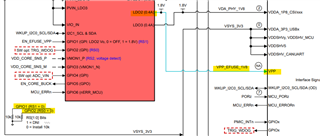

but below power map is vice versa.

which setting is correct, if we want to use LDO2 for Efuse Prgm?

best regards,

  • 0
    TI__Mastermind 20530 points

    Hi Jihoon,

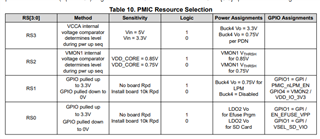

    Thank you for reporting this mistake. I will communicate this to the engineer responsible of this document. The table 10 information is incorrect so you can follow this guide:

     1) RS0: 0 set -> LDO2 for efuse supply

     2) RS0: 1 set -> LDO2 for SD Card

    I also confirmed this functionality on our EVM.

    regards,

    Niko
