TLC6C5716-Q1: Reading procedure from TLC6C5716 LED driver

Hi Pranav,

Our expert is out of office and will give you feedback when comes back.

Hi Pranav,

Once you have sent SID read command (5A3h), you could get the SID information from SOUT.  You can refer to register map figure 30.

And for sending this command, you can refer to figure4 for detailed procedure.

For the daisy chain, every device will transfer this command thru SDI and the output the SID information from common shift register.

BR, Gracie

Thank you Sir for your response.
Could provide me sample code regarding to this.It will bw helpful for me.

Pranav

4024.TLC6C5716-Q1 EVM Programming.pptx

Hi Pranav,

Pls refer to attachment.

BR, Gracie

Hello Sir,

Thank you helping me.

Is there any way i could my data comming out to be valid or not from SID register? How to confrim that ?

Another thing is that my configuration is dasiy chain configuration of two this driver.
So it show that after 288 bit which is 36 bytes we have toggle the latch than giving back the data through SDO pin,


What to do in case of daisy chain configuration?
For example , in write data we basically dump data upto 72 bytes in one go.
So same things to be done daisy chain configuration too.

Thank in advance

Hi Pranav,

You need to send 288*2 bits and then latch for the daisy chain. Similarly, the SID information is 288 bits*2.

BR, Gracie

Hello Sir,

Again I read datasheet , following question to ask,
1.
could u help me with this,

2. One thing I want to know for this driver, is special things to be done for diagnostic purposes. Or is there anything like that for normal mode you to do these types of things and  for diagnostics, you have  these things to be run, please help in this

like Normal Mode what to do

and diagnostic  mode  what to do

3.
This pin has been used in diagnostics purposes. Please help me to understand this pin.

4.Eariler i asked this SID register ,

So,SID register

we have follow simply this or we have done any thing  extra or may be changes in hardware  or anything else ,

Please help me regarding this problem

Thanks in Advance

Pranav


Hi Pranav,

This is Mam instead of sir.

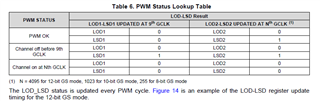

1. There is a lookup table. If you make GS data< 9th GCLK, you can refer to that PWM lookup table to waive this fault:

2. GCLK is a counting clock for PWM generation. You can see PWM frequency is F(GCLK)/2^N (N= PWM resolution bit). So basically GS data is based on the turning-on GCLKs.

3. DO you still have problems on the readback?

BR, Gracie

Yes mam

It is compulsory that after 288 bit we have toggle the latch,or it could done before 288 bit for example after 250 bit we could toggle latch
and
Also you did not tell me that diagonestic fault what we done special ?
Or

basically I read the data from SID register , I found the fault  that it ,nothing special is not done to find diagonastic fault.

THanks in Advance
Pranav

Hi Pranav,

2 devices in daisy chain, so you need to send 288bit*2 and then toggle latch.

Which specific fault did you read according to the register map?

BR， Gracie

Mam
I want to read LED short-detection and LED open Detection

Another thing there is the ERR pin , How it is working in diagnostic mode.

Mam,
This question is related to ERR pin, by default Err pin give fault if there is fault exist ,What is output for ERR pin if Fault Exist

or   Is initialization required in program for ERR pin to detect any fault

Hi Pranav,

Do you find ERR pin pulls low during initialization?

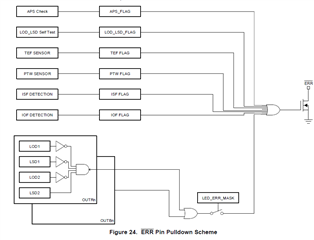

Here is the scheme of err pin.

BR, Gracie

Here mam i am sending SID command upto double of 288 bit which 576 bit after that I toggle latch but I did not get any data on SDO pin

so please how to get the data on SDO pin

And INtially  ERR pin pulls low

I had other things reading from SID register please let me know Mam

Pranav

Hi Pranav,

You need to send SID command after GS data write.

You can try with 1 device first and then 2 devices.

BR, Gracie

Mam
Firstly i had to send GS data cmd
After that I Had to send SID cmd

Could tell me where it is mention datasheet?

Hi Pranav,

You know only when the output is sinking current which means GS data is not zero, could the device detect LOD/LSD. So you must send GS data and then begins the readback of SID.

BR, Gracie

Mam
I found that I am using ERR pin , if I remove any LED, that ERR pin goes to 0 volt by default that pin is high that is 5V.
Could you provide LED driver sample code , it will be helpful.
Now I make it working on 1 led driver only .
Pranav

Hi Pranav,

Since you remove LED, then there is LOD error for sure. OK. Here is the sample code for TLC6C5724-Q1 but they share exactly the same interface and you can directly light up your TLC6C5716-Q1.

https://tidrive.ext.ti.com/u/kcDBRz_AwQODwMFI/300cf5cd-a5b4-41f5-8432-8bd30f0dc58f?l

x{z3VWS7

The link is not open

Hi Pranav,

Please expect some delay of our response.

Hi Pranav,

You can copy the link to your browser to open it. The access code is below the link.

BR, Gracie

Mam,
The link is not working

Could you provide other way of the link.
Pranav

https://tidrive.ext.ti.com/u/y6GbumWhm_nZoZu1/300cf5cd-a5b4-41f5-8432-8bd30f0dc58f?l

+38PvKFW

See if this one can work.

Mam
It requried access code

Please provide the access code
Pranav

+38PvKFW

mam,

Sorry for the delay Mam.

 sample code is another LED driver which is TLC5948A but mine is TLC6C5716-Q1.
If you provide a sample code of TLC6C5716-Q1.
I will be thankful to you mam
Pranav

Hi Pranav,

As I have mentioned,

Gracie Guo said:

Here is the sample code for TLC6C5724-Q1 but they share exactly the same interface and you can directly light up your TLC6C5716-Q1.

Could you pls try with the code?

BR, Gracie

Mam,
Sorry to Distrub u Mam,

The code you sent me , there is only sending part , but there is no receiving part , how you will I receive data ,

    SendDCData(0xA53, 0x0, 0x00, 0, 0, 0, 0, 0, 0, 0, 0, DCdata0);

    SendDCData(0xA5C, 0x0, 0x00, 0, 0, 0, 0, 0, 0, 0, 0, DCdata0);

    SendDCData(0, 0x3, 0x00, 0, 1, 0, 0, 0, 10, 10, 10, DCdata1);

    while(1)

    {

        SendGSData(GSdata1);

        delay_ms(200);

        SendGSData(GSdata0);

        delay_ms(200);

    }

Actually convert it but there is no receiving part ,For example send SID than , how I receive this data from SID register?

I found that to receive data from SID required clk , there is no clk after toggle latch

Also in datasheet it is mention

Another thing is that how to check that my communication between LED driver and microcontroller is working properly , is there any register that could tell that.

Please help me as soon as possible

Thanks in advance

Pranav

Gracie Guo said:

4024.TLC6C5716-Q1 EVM Programming.pptx

Hi Pranav,

Pls refer to attachment.

BR, Gracie

Hi Pranav,

yes. you are right. We only have lighting up code in the sample code. But in the TLC6C5716/24-Q1 GUI, we have shown the SID read command. See in this slides.

BR, Gracie

Mam,

Sorry to say but i does not understand your response , I only want understand that to receive from LED driver giving data on SDO pin.How?

Where is it mentioned that data is coming from SDO ?

Another thing is that how to check that my communication between LED driver and microcontroller is working properly , is there any register that could tell that.
Pranav

Hi Pranav,

There is no register that could indicate the communication is well except the read GS register. The suggestion is to use GUI to monitor the SDO. If it's not convenient for you, pls allow me some time to test.

BR, Gracie

Mam,
OK mam, you take some time to test.
Last question After sending GS cmd or SID cmd, so I had to develop reading function too, so my question is after toggle of LAtch, than I start reading the SDO pin ,
That is what I should do,

Also, what initial things are required for the LED driver to work properly?

What is initialization part for the LED driver to work?

Pranav

Hi Pranav,

Our expert will give you feedback later.

hello Mam,

Sorry to distrub u.

Could you find any solution regarding Reading of GS data?

Pranav

You can see SDO after we sent 5A3 SID read.

And for GS read, it's similar as SID read.

BR, Gracie

hello mam,
thank you for your response.
could you provide me reading function for  GS and SID ?
Earlier you provided me code in that code you provide a reading function in it or a similar example to that.

Pranav

Hi Pranav,

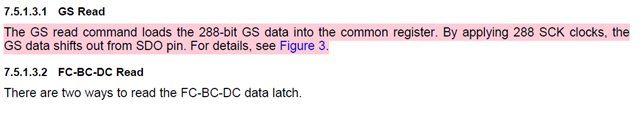

I have already provided SID read and the SDO output in the screenshot. Basically, SDI is 5A3h, and 288SCLKs, Latch toggle, and then SDO has output. GS read is quite similar to SID read. The command is like the above figure.

BR, Gracie

Mam
One thing I has to ask , What things to be required to for initialization of this LED Driver?

thank u in advance
Pranav

Hi Pranav,

You can send FC-BC-DC control data and GS data for the initialization.

BR, Gracie

Mam,
Sorry for late response.
Could provide u me this logical analyizer file. It will be helpful to me.
And now problem is that I does not know how validate the data. coming from SDO

PLease let me know
Pranav

mam, I does not get any response
Pranav

I already replied in this screenshot:
