BQ79656EVM-021: PARTID IS WRONG

Ray

Part Number: BQ79656EVM-021

Datasheet SLUSE48B - May 2021 - REVISED NOVEMBER 2023

Hello,

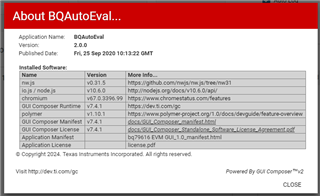

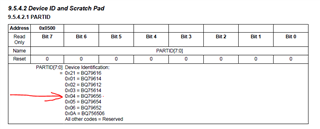

I am using BQAutoEval to read the PARTID out of the BQ79656 that is installed on my BQ79656EVM-021 board. As you can see from below, I am reading out 0x22 but the datasheet says the PARTID for a BQ79656 should be 0x04. Why are they different?

The marking on the chip are:

12A2C1W

BQ79656

G4 (G4 is underlined).

I am reading back 0x22 from register 0x0501.

over 1 year ago

0 David Ray over 1 year ago

TI__Expert 7000 points

Hello Ray,

I am currently looking into this question.

Regards,

David

0 David Ray over 1 year ago in reply to David Ray

TI__Expert 7000 points

Hi Ray,

Can you check the FAULT_OTP register (0x0535) to confirm if this is a register space error?

Regards,

David

0 Ray over 1 year ago in reply to David Ray

Prodigy 170 points

Hello David,

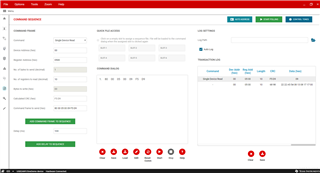

I did a Single Device Read to board 00 and I got back 00. See below. This was, of course, after a Wake up and auto addressing.

0 David Ray over 1 year ago in reply to Ray

TI__Expert 7000 points

Hi Ray,

Thanks for reading the register. This confirms that the factory registers are programmed correctly. Could you read 0x500 and read 10 registers from it so that we may have the die_id?

Regards,

David

0 Ray over 1 year ago in reply to David Ray

Prodigy 170 points

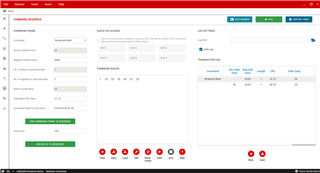

Here you go.

0 David Ray over 1 year ago in reply to Ray

TI__Expert 7000 points

Hi Ray,

I see 0x04 instead of 0x22 on another 656 EVM. I am reviewing this with our test team.

Regards,

David

0 David Ray over 1 year ago in reply to David Ray

TI__Expert 7000 points

Hi Ray,

Speaking with the test team, they said this specific IC is a very old IC. This is most likely a pre-production IC which is why the part id is different than what is stated in the datasheet. I would recommend not using this IC.

Regards,

David

0 Ray over 1 year ago in reply to David Ray

Prodigy 170 points

This IC is on a development BQ79656EVM-021 kit. Can TI exchange it for a newer board, FOC?

0 David Ray over 1 year ago in reply to Ray

TI__Expert 7000 points

Hi Ray,

I am switching this to email.

Regards,

David
