TPS62180: Minimum thermal shutdown rising threshold

Kazuki Itoh

Part Number: TPS62180

Tool/software:

Hi team,

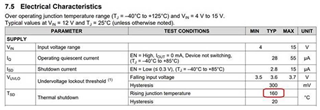

Could you let me know the minimum value of Thermal Shutdown (Rising junction temperature=160℃(Hysteresis20℃))?
When my customer's system is operating, TPS62180YZFR suddenly output PG=low and the output voltage goes down.
When the behavior above occurs, the customer's system temperature around TPS62180YZFR is ~130℃.
So it does't match 160℃ specified in the datasheet.

They would like to check the possibility to shutdown in the temperature lower than 160℃.

Best regards,
Kazuki Itoh

over 1 year ago

0 Colin Chen over 1 year ago

TI__Mastermind 21141 points

Hi Sir,

160C is junction temperature(TJ) which cause TSD. It is not ambient temperature(TA) .

The TJ=TA+RθJA *P_loss, so it may meet TSD with TA=130C ambient temperature.

Thanks

Colin

0 Kazuki Itoh over 1 year ago in reply to Colin Chen

TI__Genius 10730 points

Hi Colin-san,

Thank you for checking.

The information previously I conveyed was partially wrong. Let me correct the situation.

TA was not 130C. My customer actually measured case top temperature with thermocouple.

So TC=130C. As RθJCtop is 0.3℃/W in the datasheet, it seems like the junction temperature is smaller than 160C.

Also, VIN=12V, VOUT=5V, IOUT=3A when the thermal shutdown was triggered.

Best regards,

Kazuki Itoh

0 Colin Chen over 1 year ago in reply to Kazuki Itoh

TI__Mastermind 21141 points

Hi Sir,

We should believe the TSD of TJ is 160C in datasheet, but it would be unprecise to get case top temperature if we don't measure at once when meet TSD.

Because TSD has hysteresis to recover and the case top temperature will go down after TSD.

BTW, we don't suggest customer to use it at TJ>=125C, the feature and performance cannot be guaranteed in such temperature.

Thanks

Colin

0 Kazuki Itoh over 1 year ago in reply to Colin Chen

TI__Genius 10730 points

Hi Colin-san,

OK, I told my customer know that they cannot use the device with 130C case top temperature.

They mentioned that they tested the system under the condition with unsufficient cooling, and found the TPS62180 triggers TSD under Tc=130C.

So they want to make sure the accurate TSD threshold.

Can we provide the minimum TSD rising threshold as a reference (We don't need to guarantee).

Best regards,

Kazuki Itoh

0 Lucia Gao over 1 year ago in reply to Kazuki Itoh

TI__Mastermind 30291 points

Hi Kazuki-san,

My colleague Colin will give you response during these days. Thanks!

BRs

Lucia

0 Colin Chen over 1 year ago in reply to Kazuki Itoh

TI__Mastermind 21141 points

Hi Sir,

Sorry, we don't guarantee what the minimum TSD is and should regard the 160C is typical TSD temperature.

Hope you can understand.

Thanks

Colin

0 Kazuki Itoh over 1 year ago in reply to Colin Chen

TI__Genius 10730 points

Hi Colin-san,

As I mentioned, my customer doesn't neccesarily want the value we can guarantee.

Can we provide the design target tolerance (+/- x%) of TSD or something like that?

Best regards,

Kazuki Itoh

0 Lucia Gao over 1 year ago in reply to Kazuki Itoh

TI__Mastermind 30291 points

Hi Kazuki-san,

Colin will get back to you soon. Thanks!

BRs

Lucia

0 Colin Chen over 1 year ago in reply to Kazuki Itoh

TI__Mastermind 21141 points

Hi Sir,

I will check with TE for this and will feedback when have a answer,

Sorry for inconvenience.

Colin

+1 Colin Chen over 1 year ago in reply to Colin Chen

TI__Mastermind 21141 points

Hi Sir,

I have checked with TE, the feedback is the we can guarantee Tj<=150C wouldn't trigger TSD, but above that there is low risk to meet.

We still think the type temperature of TSD is 160C.

Hope it can help you.

Thanks

Colin
