BQ25792EVM: Autodetect on D+D- do not start automatically

Stefano Sivera
Prodigy 221 points
Part Number: BQ25792EVM

Tool/software:

Dear Support team,

I'm evaluate the BQ25792EVM powerd from external USB power adapter and the USB detect do not start automatically when plug the USB connector.

The D+ and D- remain low but is I check "Force d+ d- detection" a detection is performed.

I have also attached the configuration of the EVB; can you tell me if there is a missng configuration to start automatically the D+ D- autodetect ?

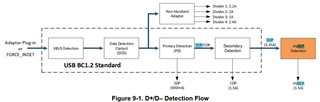

On the data sheet of the component is showed:

where is reported a DCP with 3,25A capability but the BC1.2 standard the max current is 1,5A; can you explain ?

Thank you

Best regards

Stefano

  • 0
    Prodigy 221 points

    Fullscreen BQ25792_Default.txt Download
    * Created: Fri May 31 14:34:49 CEST 2024
*
* Format: Register Name  tab Character,\t  Register Address  tab Character,\t  Hexadecimal register value.
* BQZ Container: Charger_2_00-BQ25790_92.bqz
*
REG00	00	04
REG01	01	1A4
REG03	03	11
REG05	05	2D
REG06	06	145
REG08	08	C3
REG09	09	05
REG0A	0A	23
REG0B	0B	DC
REG0D	0D	4B
REG0E	0E	3D
REG0F	0F	A2
REG10	10	80
REG11	11	C0
REG12	12	00
REG13	13	01
REG14	14	94
REG15	15	AA
REG16	16	C0
REG17	17	7A
REG18	18	50
REG19	19	145
REG1B	1B	0F
REG1C	1C	07
REG1D	1D	01
REG1E	1E	C0
REG1F	1F	00
REG20	20	00
REG21	21	00
REG22	22	00
REG23	23	11
REG24	24	40
REG25	25	00
REG26	26	00
REG27	27	00
REG28	28	00
REG29	29	00
REG2A	2A	00
REG2B	2B	00
REG2C	2C	00
REG2D	2D	00
REG2E	2E	B0
REG2F	2F	00
REG30	30	00
REG31	31	0F
REG33	33	00
REG35	35	141E
REG37	37	141E
REG37	39	141E
REG3B	3B	F49
REG3D	3D	F4E
REG3F	3F	251
REG41	41	27
REG43	43	00
REG45	45	00
REG47	47	00
REG48	48	08
    Configuration register dump

  • 0
    TI__Guru**** 166996 points

    HI Stefano,

    Autodetect only functions on VBUS1/VAC1.  Were you using VBUS2/VAC2 input?

    Regards,

    Jeff

  • 0 in reply to Jeff F
    Prodigy 221 points

    Hi Jeff,

    thank you for answer.

    I'm plug the power supply into the USB connector and I have shorted  JP3- JP4 and JP7 is shorted to USB_VIN-VAC1
    I have shorted also JP4 because find on the data sheet : "Connect to VBUS if the ACFET2 and RBFET2 are not installed."

    Stefano

  • 0 in reply to Stefano Sivera
    TI__Guru**** 166996 points

    Hi Stefano,

    The highlighted header connections below should allow for auto d+d-.

    Regards,

    Jeff

  • 0 in reply to Jeff F
    Prodigy 221 points

    Hi Jeff, yes the issue is related to JP4, must be removed. Thank you for the support .

    What about the different current showed in BC1.2 and DCP showen in data sheet after secondary detection ?

  • 0 in reply to Stefano Sivera
    TI__Guru**** 166996 points

    Hi Stefano,

    CDP does not complete unless the USB host enumerates immediately after CDP detection.  If  IINDPM=3.25A is too high after DCP detect then you can use ILIM_HIZ resistors to clamp IINDPM to 1.5A.

    Regards,

    Jeff

  • 0 in reply to Jeff F
    Prodigy 221 points

    Hi Jeff,

    ok then tf the BQ detect a DCM, my host rewrite the current limit at 1,5A.

    Now I'm checking some USB adapter and I'have some trouble but I prefer open another question.

    Thank You

    Best Regards

    Stefano
