TPS65987DDK: Tx Identity configuration

Eugene

Intellectual 320 points

Part Number: TPS65987DDK

Tool/software:

I'm designing a USB PD application board with TPS65987DDK.

The capability is DRP sourcing device with supporting DP alt mode. TBT and USB4 are not supported.

How should I configure Tx Identity field in this case?

I'm not sure how many valid VDOs should have. Are there any example pjt or document?

over 1 year ago

+1 Aya Khedr over 1 year ago

TI__Mastermind 29932 points

Hi Eugene,

Thank you for reaching out!

Please see this application note on DisplayPort:

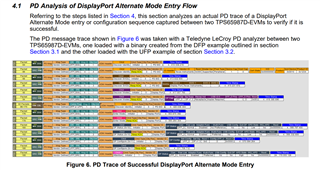

The TX Identity field contents are reported by the UFP when the DFP (far-end device) sends a Discover Identity command. Typically, 3 valid VDOs should be sufficient (see the PD messages below for an example)

Please let me know if you have additional questions/concerns.

Best Regards,

Aya Khedr

0 Eugene over 1 year ago in reply to Aya Khedr

Intellectual 320 points

Hi Aya

Thank you so much for your support.

I'll apply 3 VDOs.

By the way, Is it OK to use TI vendor ID 0x0451 and product ID 0x1234 for my products?

Our company doesn't have vendor ID and we don't plan to get certification thus we'd like to use the default TI values.

Do I need a contract or fee with TI?

Best Regards,

Eugene

0 Aya Khedr over 1 year ago in reply to Eugene

TI__Mastermind 29932 points

Hi Eugene,

I will check internally and get back to you tomorrow with feedback.

Best Regards,

Aya Khedr

0 Aya Khedr over 1 year ago in reply to Aya Khedr

TI__Mastermind 29932 points

Hi Eugene,

Apologies on the delay.

Eugene said:
By the way, Is it OK to use TI vendor ID 0x0451 and product ID 0x1234 for my products?

This should be fine!

Best Regards,

Aya Khedr

0 Eugene over 1 year ago in reply to Aya Khedr

Intellectual 320 points

Hi Aya

Thank you for your confirmation.

We don't need any agreement or fee, right?

I'll use TI IDs on my mass-production model, thanks.

0 Aya Khedr over 1 year ago in reply to Eugene

TI__Mastermind 29932 points

Hi Eugene,

That is correct.

Best Regards,

Aya Khedr
