TPS4H000-Q1: Pin Number and Pin Designation mismatch in PSpice and Datasheet

Gokul Kasilingam

Prodigy 90 points

Part Number: TPS4H000-Q1

Tool/software:

Hi,

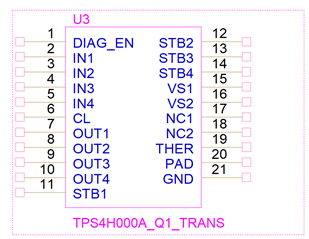

TPS4H000-Q1 Version A

Datasheet:

PSpice:

Regards,

Gokul Kasilingam

over 1 year ago

+1 Timothy Logan over 1 year ago

TI__Mastermind 34935 points

Gokul,

The PSPICE model's net numbers will not necessarily match the actual pin numbers of the device. When using the PSPICE model, please just refer to the functional net names when making the proper connection.

Best Regards,
Tim

0 Gokul Kasilingam over 1 year ago in reply to Timothy Logan

Prodigy 90 points

Hi Tim,

Thanks for your responce.

Regards,

Gokul Kasilingam
