TPS62933O: TPS62933ODRLR SOT583 Schematic and Component MPN Required

Adi Tech
Prodigy 90 points
Part Number: TPS62933O
Other Parts Discussed in Thread: TPS62933EVM

Tool/software:

Hello,

We will want to implement the "TPS62933ODRLR  SOT583" IC in our product.

Our specifications include a 24V DC input and a 5V 3A DC output. Kindly provide the schematic and component values according to these requirements.

Thank You.

  • 0
    TI__Mastermind 27296 points

    Hi Adi

    You can use the WEBENCH tool to help with design.

    Thanks and best regards.

  • 0 in reply to Gui He
    Prodigy 90 points

    Hello,

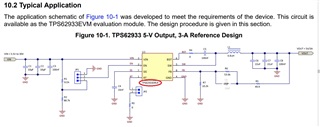

    We developed our schematic based on the Typical Application Schematic of the "TPS62933DRLR" IC (refer to attached Image 1 - TPS62933DRLR IC) and the schematic from the "TPS62933EVM-129 3-A Regulator Evaluation Module" (refer to attached Image 2 - TPS62933EVM) for the "TPS62933ODRLR SOT583" IC.

    Please review our schematic (See attached Image3 - TPS62933DORLR) and advise if any updates are needed.
    Thank You.
  • 0 in reply to Adi Tech
    TI__Mastermind 27296 points

    Hi Adi

    The circuit looks good to me except that The 6.8uH inductor selection is based on fsw=500kHz when RT is floating(Please see Table 9-1 and Table 10-1 in datasheet).

    You can make R56 NC and keep current inductance, or you can short RT to GND and select a 2.2uH~3.3uH inductor.

    Thanks and best regards.
