TPS65987D: Get HPD input status via I2C

Eugene

Intellectual 320 points

Part Number: TPS65987D

Tool/software:

How can I get HPD status via I2C?

I configure TPS65987D as UFP_D without TBT on the TPS65987EVM.

Even if the GPIO3 input is High, the the value of 0x5F[15] and 0x72[3] are always 0b.

I plan to use TPS65987DDK on my custom board.

But I'm evaluating basic behavior on TPS65987EVM now because I have not gotten my board yet.

over 1 year ago

0 Alex Liu over 1 year ago

TI__Genius 12845 points

Hi Eugene,

A team member will respond to assist you on your query shortly. Please do expect some delays because of the fourth of July holiday.

0 Eugene over 1 year ago in reply to Alex Liu

Intellectual 320 points

Hi Alex

Thank you, I'll wait your replying.

For your reference, I attached the TPS65987EVM FW I tested.

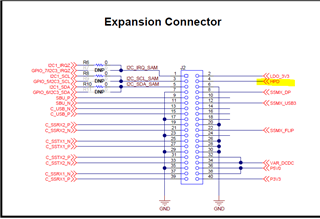

I connected TPS65987EVM and a PC which supports DP Alt Mode and I tried connecting 3.3V or GND to HPD pin, but these bits were always 0b.

TPS65987D_EVM_60W_test2.pjt

0 Alex Liu over 1 year ago in reply to Eugene

TI__Genius 12845 points

TI Dallas is closed for the Fourth of July holiday. Please expect delays while much of our team is out of office the rest of this week.

Thank you for your understanding.

0 Varun Thakurta over 1 year ago in reply to Alex Liu

TI__Intellectual 1660 points

Eugene,

please enable bit 14 of reg 52h

0 Eugene over 1 year ago in reply to Varun Thakurta

Intellectual 320 points

Hi Varun

bit14 of reg 52h is reserved bit. What will this bit affect the TPS65987DDK behavior?

I'd like to use it without supporting TBT.

+1 Varun Thakurta over 1 year ago in reply to Eugene

TI__Intellectual 1660 points

Eugene,

what is it that you're trying to?

You're taking HPD RX input and at the same time want to see HPD state over reg 5Fh? If that's the case, then its not the correct usage of the feature.
