TPS61022: need help for Bode plot of TPS61022

linjie pan
Prodigy 10 points
Part Number: TPS61022

Tool/software:

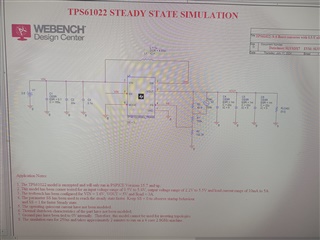

I modify the sch of TPS61022rwu_TRANS as show blow,

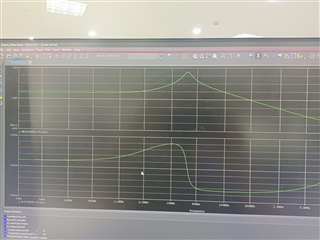

but the result of bode plot is not correct, the curve of phase is always blow 0 , and the curve of Gain is always blow 0. the following picture is the result of bode plot.

  • 0
    TI__Genius 12195 points

    Hi linjie,

    Transient models does not support bode plot simulations. You would need an average  PISPICE model for that.

    Unfortunately, we could not find an average model for this device.

    You could use the Excel calculation tool of TPS61022 or WEBENCH power designer tool below to get the bode plot.

    webench.ti.com/power-designer/

    Best regards

    Sneha

  • 0 in reply to Nathan Ding
    Prodigy 10 points

    Hi, Sneha

    Thank you for your quickly reply. I have find the bode plot by the Excel calculation tool of TPS61022 or WEBENCH power designer tool.

    It seams that most of dc/dc ICs don't have average  PISPICE model on web of TI.
