TL431: SOT Symbolization update.

Kengo.Y

Guru 11255 points

Part Number: TL431

Tool/software:

Hi team,

I'd like to know about PCN(0240624000.0).
Is this a device marking change?

BR,
Kengo.

over 1 year ago

0 Lorena Dudman over 1 year ago

TI__Expert 8990 points

Hi! For PCN20240624000.0, the original device marking remains the same. The symbolization maintained the current Year/Month binary codes. The 4 additional binary codes are for internal use only for easier traceability.

0 Kengo.Y over 1 year ago in reply to Lorena Dudman

Guru 11255 points

Hi,

Thank you for your reply.
Do you have before and after marking photos of the changes?

BR,
Kengo.

+1 Lorena Dudman over 1 year ago in reply to Kengo.Y

TI__Expert 8990 points

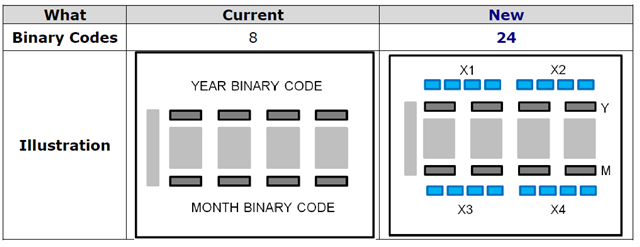

You can refer to the illustration below. The blue dashes are what we refer to as additional binary code. This is on the PCN.

0 Kengo.Y over 1 year ago in reply to Lorena Dudman

Guru 11255 points

Hi Lorena,

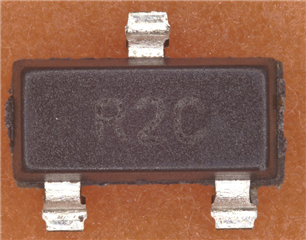

I checked the sample I had and could not find how to read the code.
Please let me know what these numbers indicate and what changes will be made in the future.

0 Lorena Dudman over 1 year ago in reply to Kengo.Y

TI__Expert 8990 points

Hi! This R2C top mark is not for TL41. Please double check.

0 Kengo.Y over 1 year ago in reply to Lorena Dudman

Guru 11255 points

Thank you for reply.

I couldn't understand yet.

Are you saying that the device markings will remain the same, still R2C?

If so, please elaborate on what this PCN will change.
If device marking, where is the marking?

BR,
Kengo.

0 Lorena Dudman over 1 year ago in reply to Kengo.Y

TI__Expert 8990 points

Hi Kengo, the device id on the top mark will not change; it will remain R2C. Kindly review the PCN again. It describes in detail the change.

0 Kengo.Y over 1 year ago in reply to Lorena Dudman

Guru 11255 points

Hi Lorena,

OK, I understood the top marking not change.
However, I have looked at the PCN and do not know what will change.
Could you tell me more detail?
Is the label information changing?

0 Masoud Beheshti61 over 1 year ago in reply to Kengo.Y

TI__Mastermind 18071 points

Greetings - our team will respond on July 29th. Thanks.

0 Lorena Dudman over 1 year ago in reply to Masoud Beheshti61

TI__Expert 8990 points

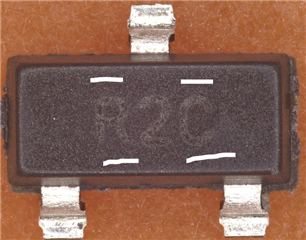

Hi Kengo, when you start receiving units from the TIPI assembly site, you will see the binary code dashes (black color on the illustration) on top and below the R2C. Moreover, there will be an additional binary code (blue on the PCN illustration).

0 Kengo.Y over 1 year ago in reply to Lorena Dudman

Guru 11255 points

Hi Lorena,

I'm very confused by your comments.
Do you mean that the following changes will be made?

In other words, it will be added to the markings?

+1 Lorena Dudman over 1 year ago in reply to Kengo.Y

TI__Expert 8990 points

Hi Kengo,

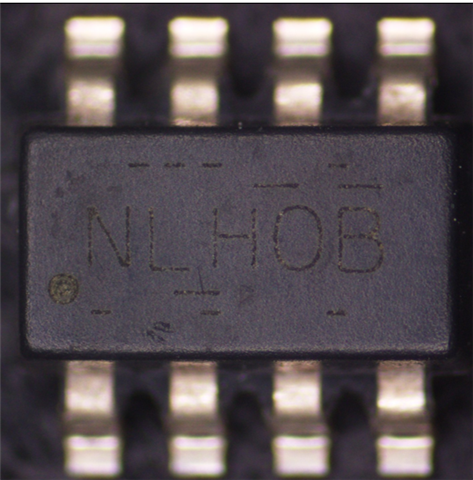

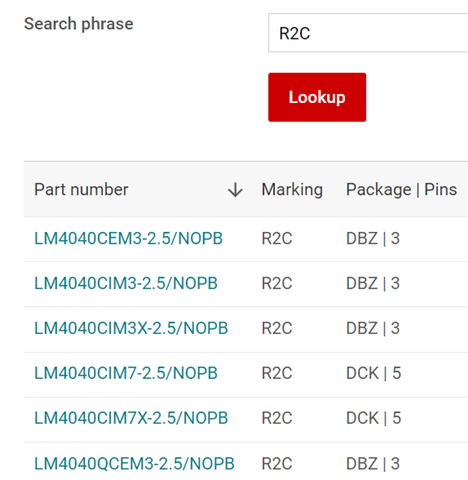

This is an example but for a different device. You can see the dashes above and below the top mark. Hope this helps.
