BQ27220: GPC Deviation Error

Simon Holman

Part Number: BQ27220

Tool/software:

When using the GPC I am getting deviation errors, but am unsure what is causing it?

I created 2 data sets, raw and filtered.
The filtered data set has a low pass filter applied as the power in our system oscillated at around 0.5Hz.

Attached are the datasets the reports.

Thanks in advance.

gauge_parameter_calculator_config_v3_filtered.zip

gauge_parameter_calculator_config_v3_raw.zip

gauge_parameter_calculator_config_v3_filtered-report.zip

gauge_parameter_calculator_config_v3_raw-report.zip

over 1 year ago

0 Dominik Hartl11 over 1 year ago

TI__Guru 60846 points

I submitted your data for analysis and will update the thread once I receive the results.

0 Dominik Hartl11 over 1 year ago in reply to Dominik Hartl11

TI__Guru 60846 points

The problem is with the data close to end of discharge:

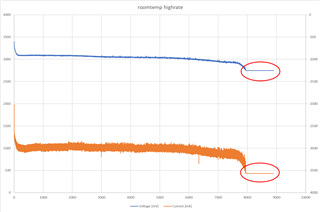

Voltage stays constant even though there's a constant high discharge current for more than 15 minutes, which isn't plausible. Please correct the data and resubmit.

0 Simon Holman over 1 year ago in reply to Dominik Hartl11

Prodigy 20 points

Thank you Dominik,

I corrected the data and resubmitted, but still have large deviation errors.

gauge_parameter_calculator_config_v3.zip

gauge_parameter_calculator_config_v3-report.zip

+1 Dominik Hartl11 over 1 year ago in reply to Simon Holman

TI__Guru 60846 points

The loaded voltage curve is too flat for a 7% batt low EDV2. I changed this to 4% and made sure that the fit is around the drop-off.

gauge_parameter_calculator_config_v4.zip

gauge_parameter_calculator_config_v4-report.zip

0 Simon Holman over 1 year ago in reply to Dominik Hartl11

Prodigy 20 points

Thank you Dominik, this solved the problem.
