LM5106: LM5106 output waveform is abnormal

Lawrence He

Part Number: LM5106

Tool/software:

Hi, Support Team

our client use LM5106 for motor control, and we find output waveform is abnormal. Especially happen IC case around is 70deg.

schematic:

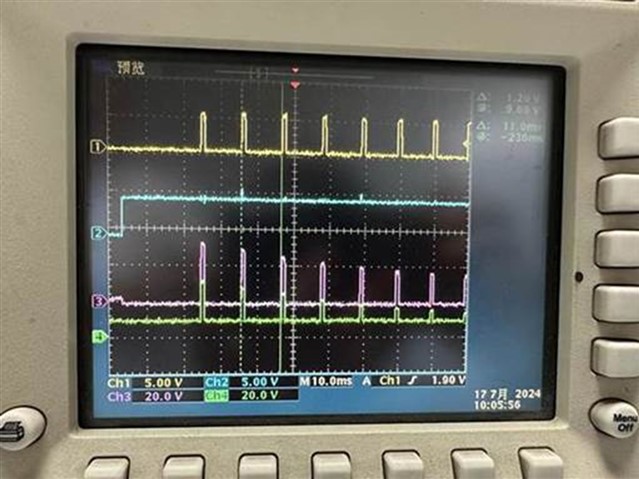

abnormal waveform:

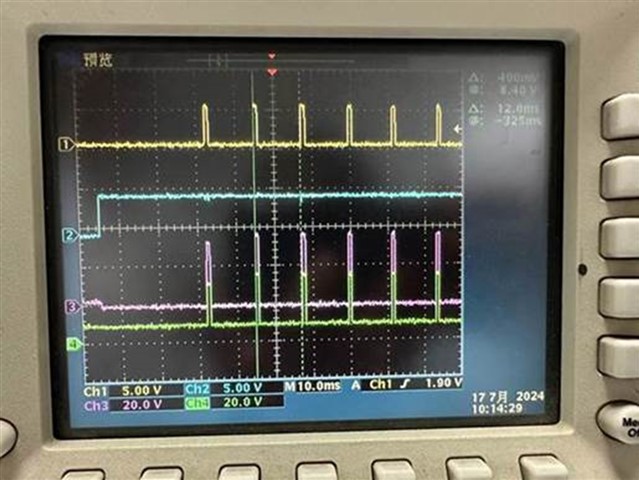

Normal waveform:

if any suggestion, Please advise me.

Thanks,

Best regards,

Lawrence

over 1 year ago

0 Jeremiah Vo over 1 year ago

TI__Intellectual 1340 points

Hi Lawrence,

Thanks for reaching out to TI.

I would like to link this application note which discusses some of the recommendations for choosing bootstrap capacitors. Looking at the capacitors in the schematic, the bypass capacitor might not be optimal for the bootstrap capacitor.

Please let us know if there are any further questions associated with that app note.

Best,

Jeremiah

0 Lawrence He over 1 year ago in reply to Jeremiah Vo

Genius 3115 points

Hi, Jeremiah

Thank you for reply, do we have calculator tool for share?

if any, Please advise me.

Thanks,

Best regards,

Lawrence

0 Jeremiah Vo over 1 year ago in reply to Lawrence He

TI__Intellectual 1340 points

Hi Lawrence,

Thanks for the patience over the weekend.

Please refer to this FAQ for that calculation help.

Please let us know if there are any other inquires or check our overall FAQ page.

Best,

Jeremiah
