BQ28Z610-R1: SoC show

lzou

Part Number: BQ28Z610-R1

Tool/software:

Hello! The BQ28Z610-R1 SOC I am currently debugging displays the battery power. The customer requires 3.2V to display 0%. During the actual test, when it reached 3.2V, the battery display jumped directly from 9% to 0%. Please tell me how to set it up so that the display can slowly reach 9%-8%-7%-6%-5%-4%-3%-2%-1%-0%? Thank you very much!

20240731.log 20240731.gg.csv

over 1 year ago

0 Jonny over 1 year ago

TI__Mastermind 24931 points

Hello,

It looks like the learning cycle was not successfully completed (Update Status is not equal to 0x0e). Please ensure you have successfully completed the learning cycle for the gauge to obtain accurate resistance and Qmax values. You can refer to this document for help on achieving the successful learning cycle.

Regards,

Jonny.

0 lzou over 1 year ago in reply to Jonny

Prodigy 40 points

Hello Jonny,

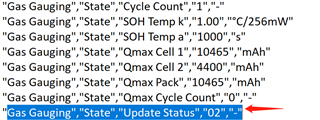

The learning cycle confirms that 0x0e has been learned. When making mass production files, the Update Status said it needs to be modified to 02.

Best regards,

Leo

0 Siddharth Venkatesan over 1 year ago in reply to lzou

TI__Intellectual 2020 points

Hello,

Could you send us a datasheet of the battery?

Regards,

Siddharth

0 lzou over 1 year ago in reply to Siddharth Venkatesan

Prodigy 40 points

Hello Siddharth,

I am using the data sheet for the battery that is already available on the software. BAK N18650CP

Thank you very much！

Best regards,

Leo

0 Siddharth Venkatesan over 1 year ago in reply to lzou

TI__Intellectual 2020 points

Hello,

The termination voltage for this battery is 2.5V. So 3.2V is too high for the gauge to recognize it as 0% SoC, and could likely be on a flat region of the curve. I would suggest decreasing your termination voltage to 3.0V and increasing the reserve capacity a bit.

https://www.ti.com/lit/an/slua948/slua948.pdf

You can use the link above to make these changes.

Regards,

Siddharth
