BQ33100: SUPER CAPACITOR CONNECTION ORDER

Vishnu V

Part Number: BQ33100

Tool/software:

Hi Team,

For connecting super capacitors to the BQ33100 manager IC, is there any specific order for the capacitors which should be followed.

Regards,

Vishnu

0 Diego over 1 year ago

Hi Vishnu,

You are using the EVM correct?

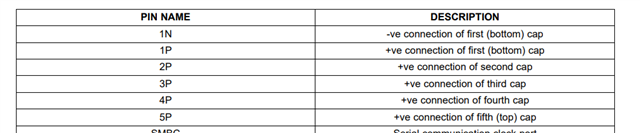

Please follow the order below.

Regards,

Diego

0 Vishnu V over 1 year ago in reply to Diego

Hi Diego,

Yes, I am using the EVM.

Is there can be any issue, if this order was not followed.

Regards,

Vishnu

0 Diego over 1 year ago in reply to Vishnu V

Hi Vishnu,

Yes, they system will not work properly if connected in a different order. (View EVM schematic)

Please follow the order listed above.

Regards,

Diego

0 Vishnu V over 1 year ago in reply to Diego

Thanks Diego.

0 Adrian over 1 year ago in reply to Vishnu V

Hello Vishnu,

Diego says "your welcome".

Regards,

Nick
