TPSM82902: Vout 1V and 3.3V not working while 0.9V, 1.8V and 2.5V are.

Najib Maalouf

Prodigy 20 points

Part Number: TPSM82902

Tool/software:

Hello,

I am using 5 TPSM82902SISR in my design, 3 of them are working:

Vin = 12V, Vout = 1.8V

Vin = 12V, Vout = 0.9V

Vin = 12V, Vout = 2.5V

2 are not working:

Vin = 12V, Vout = 1.0V

Vin = 12V, Vout = 3.3V

I don't see a short circuit at the output, what could possibly be the problem? maybe soldering?

FYI Enable is high, Vss/tr = 0V for those that are not working.

will attach screenshots of the design.

over 1 year ago

0 Colin Chen over 1 year ago

TI__Mastermind 21341 points

Hi,

I see the schematic is good. For 2 not working, Whether does D15 light in this situation?

If so, i would say it is maybe the soldering problem.

COlin

0 Najib Maalouf over 1 year ago in reply to Colin Chen

Prodigy 20 points

Hi Colin,

Thank you for your reply.

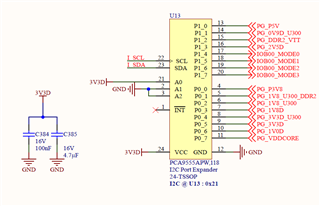

D15 is used as an indicator if the regulator is working, and the net PG_1V0D is connected to an I2C port expander as a status signal, I attached the part of the schematics also.

So I will proceed with desoldering and resoldering and will get back to you.

Best regards,

Najib

0 Colin Chen over 1 year ago in reply to Najib Maalouf

TI__Mastermind 21341 points

Ok, looking forward to your feedback.

Thanks,

Colin
