TPS22995: Tape and Reel Information

Brian Wang0928

Part Number: TPS22995

Tool/software:

Hello team,

There's no Tape and Reel information on the datasheet. Could team update it since customer do need this one for component approval process!

Regards

Brian

over 1 year ago

0 Arush Gupta over 1 year ago

TI__Mastermind 38445 points

Hi Brian,

Please explain what exactly is needed by the customer. I see the information in ti.com and datasheet.

Best Regards,
Arush

0 Brian Wang0928 over 1 year ago in reply to Arush Gupta

TI__Genius 14030 points

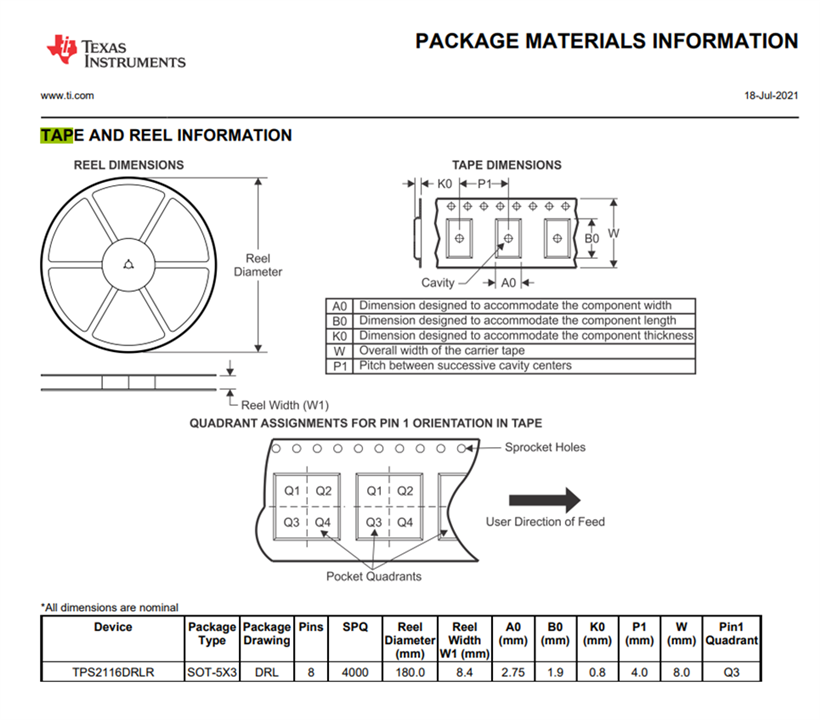

What info. customer need is like below shown on the d/s. could you update it. Very thanks.

0 Arush Gupta over 1 year ago in reply to Brian Wang0928

TI__Mastermind 38445 points

Hi Brian,

Thank you for explanation. Now I got what you were talking about. Let me ask team about this.

Best Regards,
Arush

0 Brian Wang0928 over 1 year ago in reply to Arush Gupta

TI__Genius 14030 points

Hello Arush,

Is there updated info? Customer is looking forward to get news. thanks.

Regards

Brian

0 Arush Gupta over 1 year ago in reply to Brian Wang0928

TI__Mastermind 38445 points

HI Brian,

I have already asked the Product team for this information. I am following up with them so that we can get the information little quicker.

Best Regards,
Arush

0 Inemella Sai Bharadwaj over 1 year ago

TI__Prodigy 370 points

Tape dimensions:

Device	Package Type	Package Drawing	Pins	SPQ	Reel Diameter (mm)	Reel Width W1(mm)	A0 (mm)	B0 (mm)	K0 (mm)	P1 (mm)	W (mm)	Pin1 Quadrant
TPS22995RZFR	WQFN-HR	RZF	6	3000	180	8.4	1	1.4	0.88	4	8	Q1
TPS22995RZGR	WQFN-HR	RZG	6	3000	180	8.4	0.9	1.65	0.86	4	8	Q1

Tape Box dimensions:

Device	Package Type	Package Drawing	Pins	SPQ	Length (mm)	Width (mm)	Height (mm)
TPS22995RZFR	WQFN-HR	RZF	6	3000	210	185	35
TPS22995RZGR	WQFN-HR	RZG	6	3000	210	185	35

0 Brian Wang0928 over 1 year ago in reply to Inemella Sai Bharadwaj

TI__Genius 14030 points

Thanks for feedback. However, customer would like to get below such picture and updated on the d/s. Customer QC team needs such information for materials approval process. Pls help to offer updated datasheet! Thanks!
