TPS22950-Q1: reverse current blocking feature

Hi Ethan,

I am looking this. I have asked my colleagues who have more information about the internal implementation of these blocks. I will get back to you once I get there reply.

Best Regards,
Arush

Hi Arush,

Thanks!

May I get your feedback by today? Customer will fix their schematic very soon.

Ethan Wen

Hi Ethan,

I got the answer little late. I apologies for that. Yes, the device is back-to-back gate device.

Edit: I have made a mistake here. This is incorrect.

Best Regards,
Arush

Hi Arush,

Thanks for clarify. Could you please provide a simple block diagram to help understand?

Regards,

Ethan Wen

Hi Ethan,

Please refer to section 4 of this App note.

https://www.ti.com/lit/an/snoaa23a/snoaa23a.pdf?ts=1724814498645&ref_url=https%253A%252F%252Fwww.google.com%252F#:~:text=The%20body%20diode%20is%20reverse,turn%20%22on%22%20the%20MOSFET.

Please reply back for any follow back queries.

Best Regards,
Arush

Hi Arush,

Thanks for sharing.

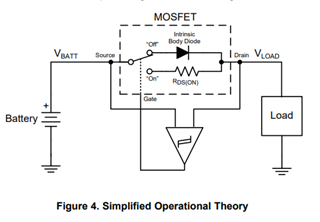

Below is the simplified diagram from app note. It seems the MOSFET here is NMOS, but TPS22950-Q1 internal FET is PMOS.

Based on the description in app note, the body diode will block the reverse current. But for PMOS of TPS22950-Q1, the body diode direction allow reverse current to flow. I am confused how PMOS work for reverse current blocking.

TPS22950-Q1:

Thanks!

Ethan Wen

Hi Arush,

Another question: do we have load switch integrated back to back MOS?

Thanks!

Ethan Wen

Hi Ethan,

Most of the eFuse don't have back-to-back (B2B) FET. Our eFuses do have RCB implementation using B2B FET. LM7310 is a eFuse derived load switch which can provide B2B FET.

Best Regards,
Arush
