TLV70018-Q1: Graph Characteristics - Startup time and discharge time

Hi Gnana,

We will need to obtain samples of this LDO which usually takes 5 business days.  Please allow 7 business days for us to capture the data and reply.

Thanks,

Stephen

Hi Gnana,

I need some more information on your setup.  What Cout are you using and what is your load and what type of load are you using like resistive or active load.

Thanks

Daniel

Hello Daniel Fiederlein,

Cout=10uF. It is connected to Active load (Ethernet switch: 88Q5050).

Thanks.

Hello Stephen Ziel,

Sure., please take your time provide me your feedback.

Thanks.

Ok how many mA is your load.

Our actual load minimum current Requirement is 140mA.

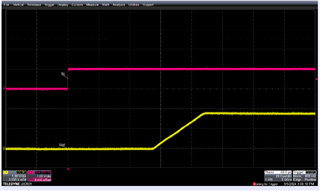

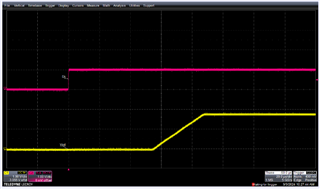

Here is turn on it takes about 58us to start turning on and is fully about 90us

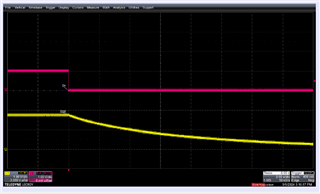

Here is turn off with no load (Open) to fully turn off take about 18s

Hello Daniel Fiederlein,

Thank you for your response. I have few questions here.

You have mentioned that 58us as starting turn on time, could you please confirm that Cout =10uF and minimum Output load current =140mA has been considered for this measurement?. And also, we need a startup time with and without load for the same. Kindly mention the top base voltage level in the waveform. Our output voltage level is 1V8.

Thanks

Gnana Saravanan P
